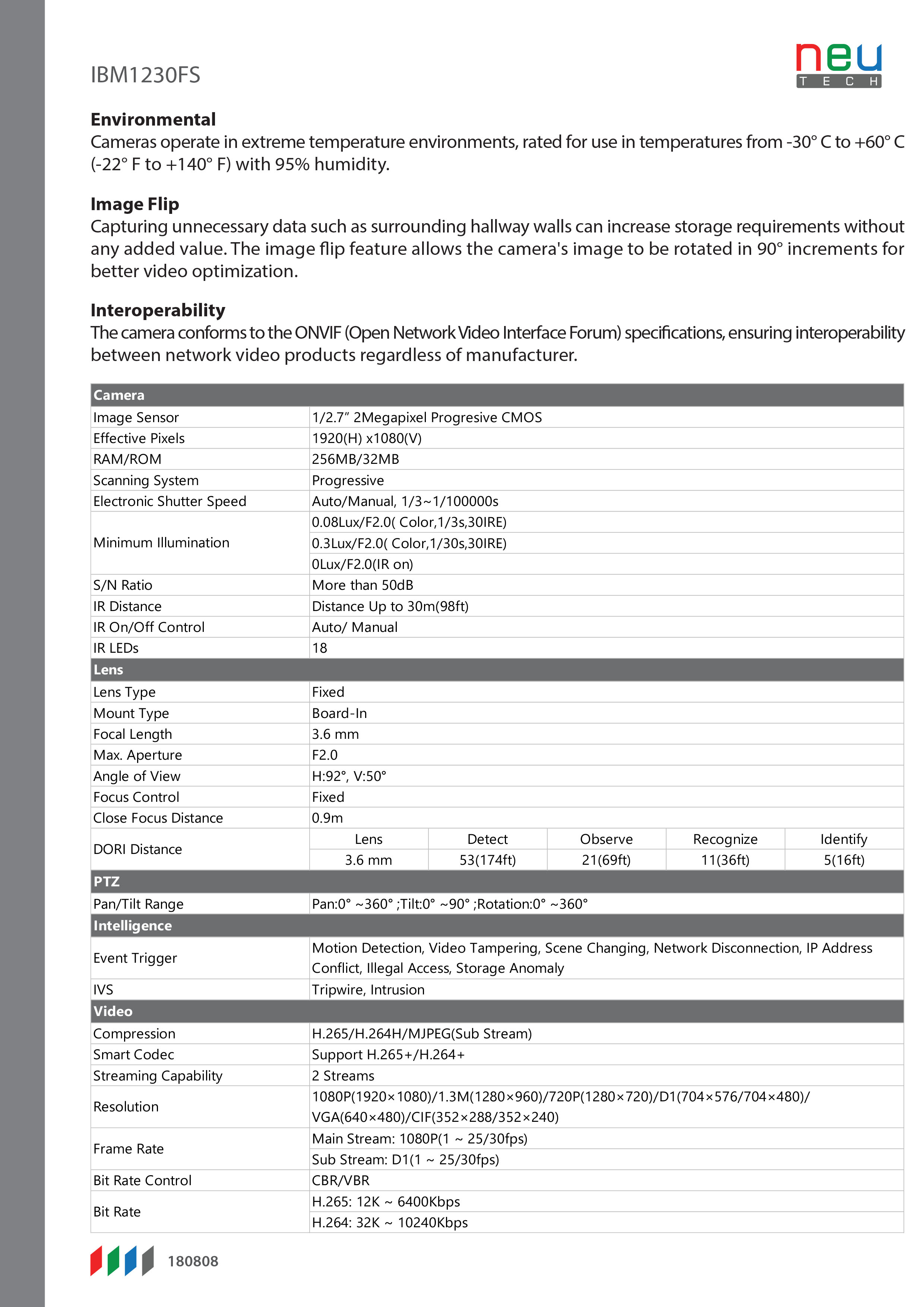

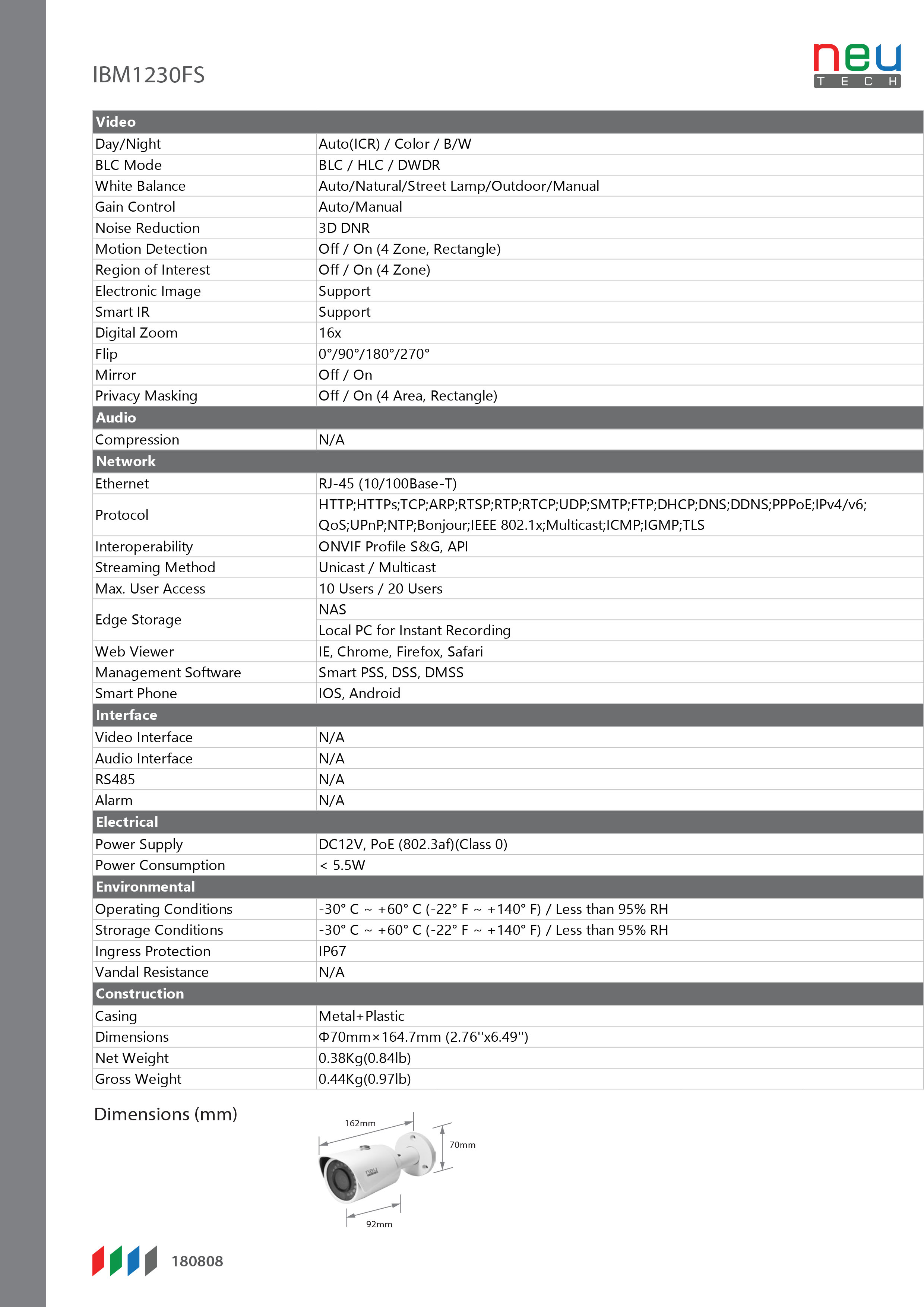

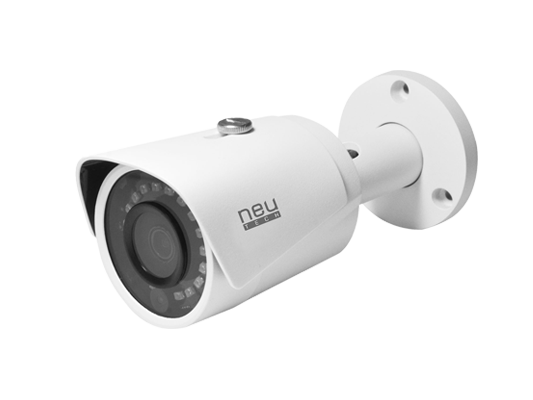

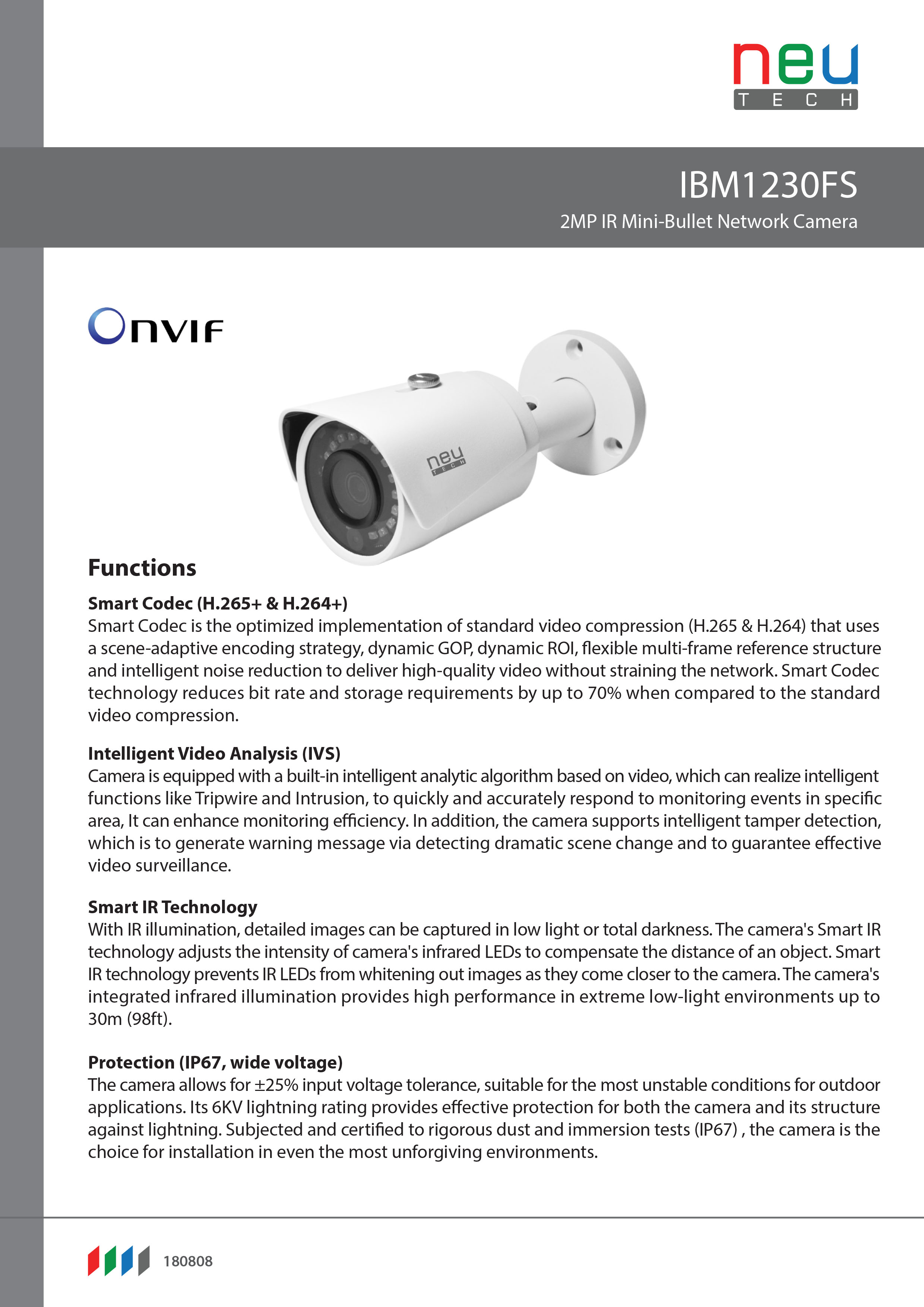

IBM-1230FS
กล้องไอพีทรงกระบอก 2 ล้านพิกเซล เลนส์ 3.6 มม.
คุณลักษณะ
| Camera | |||||
| Image Sensor | 1/2.7” 2Megapixel Progresive CMOS | ||||
| Effective Pixels | 1920(H) x1080(V) | ||||
| RAM/ROM | 256MB/32MB | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s | ||||
| Minimum Illumination | 0.08Lux/F2.0( Color,1/3s,30IRE) | ||||
| 0.3Lux/F2.0( Color,1/30s,30IRE) | |||||
| 0Lux/F2.0(IR on) | |||||
| S/N Ratio | More than 50dB | ||||
| IR Distance | Distance Up to 30m(98ft) | ||||
| IR On/Off Control | Auto/ Manual | ||||
| IR LEDs | 18 | ||||
| Lens | |||||
| Lens Type | Fixed | ||||
| Mount Type | Board-In | ||||
| Focal Length | 3.6 mm | ||||
| Max. Aperture | F2.0 | ||||
| Angle of View | H:92°, V:50° | ||||
| Focus Control | Fixed | ||||
| Close Focus Distance | 0.9m | ||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| 3.6 mm | 53(174ft) | 21(69ft) | 11(36ft) | 5(16ft) | |
| PTZ | |||||
| Pan/Tilt Range | Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360° | ||||
| Intelligence | |||||
| Event Trigger | Motion Detection, Video Tampering, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly | ||||
| IVS | Tripwire, Intrusion | ||||
| Video | |||||
| Compression | H.265/H.264H/MJPEG(Sub Stream) | ||||
| Smart Codec | Support H.265+/H.264+ | ||||
| Streaming Capability | 2 Streams | ||||
| Resolution | 1080P(1920×1080)/1.3M(1280×960)/ | ||||
| 720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/CIF(352×288/352×240) | |||||
| Frame Rate | Main Stream: 1080P(1 ~ 25/30fps) | ||||
| Sub Stream: D1(1 ~ 25/30fps) | |||||
| Bit Rate Control | CBR/VBR | ||||
| Bit Rate | H.265: 12K ~ 6400Kbps | ||||
| H.264: 32K ~ 10240Kbps | |||||
| Day/Night | Auto(ICR) / Color / B/W | ||||
| BLC Mode | BLC / HLC / DWDR | ||||
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual | ||||
| Gain Control | Auto/Manual | ||||
| Noise Reduction | 3D DNR | ||||
| Motion Detection | Off / On (4 Zone, Rectangle) | ||||
| Region of Interest | Off / On (4 Zone) | ||||
| Electronic Image | Support | ||||
| Smart IR | Support | ||||
| Digital Zoom | 16x | ||||
| Flip | 0°/90°/180°/270° | ||||
| Mirror | Off / On | ||||
| Privacy Masking | Off / On (4 Area, Rectangle) | ||||
| Audio | |||||
| Compression | N/A | ||||
| Network | |||||
| Ethernet | RJ-45 (10/100Base-T) | ||||
| Protocol | HTTP;HTTPs;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPoE;IPv4/v6; QoS;UPnP;NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;TLS |
||||
| Interoperability | ONVIF Profile S&G, API | ||||
| Streaming Method | Unicast / Multicast | ||||
| Max. User Access | 10 Users / 20 Users | ||||
| Edge Storage | NAS | ||||
| Local PC for Instant Recording | |||||
| Web Viewer | IE, Chrome, Firefox, Safari | ||||
| Management Software | Smart PSS, DSS, DMSS | ||||
| Smart Phone | IOS, Android | ||||
| Interface | |||||
| Video Interface | N/A | ||||
| Audio Interface | N/A | ||||
| RS485 | N/A | ||||
| Alarm | N/A | ||||
| Electrical | |||||
| Power Supply | DC12V, PoE (802.3af)(Class 0) | ||||
| Power Consumption | < 5.5W | ||||
| Environmental | |||||
| Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH | ||||
| Strorage Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH | ||||
| Ingress Protection | IP67 | ||||
| Vandal Resistance | N/A | ||||
| Construction | |||||
| Casing | Metal+Plastic | ||||
| Dimensions | Φ70mm×164.7mm (2.76”x6.49”) | ||||
| Net Weight | 0.38Kg(0.84lb) | ||||
| Gross Weight | 0.44Kg(0.97lb) | ||||
