IDP1230FS

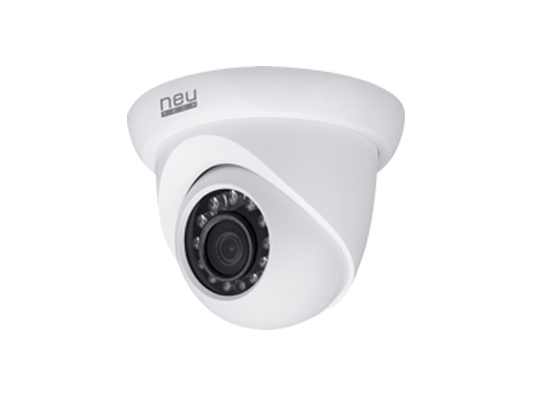

กล้องไอพีทรงโดม 2 ล้านพิกเซล เลนส์ 2.8 มม.
คุณลักษณะ
Camera | |||||
Image Sensor | 1/2.7” 2Megapixel Progresive CMOS | ||||
Effective Pixels | 1920(H) x1080(V) | ||||
RAM/ROM | 256MB/32MB | ||||
Scanning System | Progressive | ||||
Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s | ||||
Minimum Illumination | 0.08Lux/F2.0( Color,1/3s,30IRE) | ||||
0.3Lux/F2.0( Color,1/30s,30IRE) | |||||
0Lux/F2.0(IR on) | |||||
S/N Ratio | More than 50dB | ||||
IR Distance | Distance Up to 30m(98ft) | ||||
IR On/Off Control | Auto/ Manual | ||||
IR LEDs | 12 | ||||
Lens | |||||
Lens Type | Fixed | ||||
Mount Type | Board-In | ||||
Focal Length | 2.8 mm | ||||
Max. Aperture | F2.0 | ||||
Angle of View | H:104°, V:55° | ||||
Focus Control | Fixed | ||||
Close Focus Distance | 0.6m | ||||
DORI Distance | Lens | Detect | Observe | Recognize | Identify |
2.8 mm | 40(131ft) | 16(52ft) | 8(26ft) | 4(13ft) | |
PTZ | |||||
Pan/Tilt Range | Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360° | ||||
Intelligence | |||||
Event Trigger | Motion Detection, Video Tampering, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly | ||||
IVS | Tripwire, Intrusion | ||||
Video | |||||
Compression | H.265/H.264H/MJPEG(Sub Stream) | ||||
Smart Codec | Support H.265+/H.264+ | ||||
Streaming Capability | 2 Streams | ||||
Resolution | 1080P(1920×1080)/1.3M(1280×960)/720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/CIF(352×288/352×240) |
||||
Frame Rate | Main Stream: 1080P(1 ~ 25/30fps) | ||||
Sub Stream: D1(1 ~ 25/30fps) | |||||
Bit Rate Control | CBR/VBR | ||||
Bit Rate | H.265: 12K ~ 6400Kbps | ||||
H.264: 32K ~ 10240Kbps | |||||
Day/Night | Auto(ICR) / Color / B/W | ||||
BLC Mode | BLC / HLC / DWDR | ||||
White Balance | Auto/Natural/Street Lamp/Outdoor/Manual | ||||
Gain Control | Auto/Manual | ||||
Noise Reduction | 3D DNR | ||||
Motion Detection | Off / On (4 Zone, Rectangle) | ||||
Region of Interest | Off / On (4 Zone) | ||||
Electronic Image | Support | ||||
Smart IR | Support | ||||
Digital Zoom | 16x | ||||
Flip | 0°/90°/180°/270° | ||||
Mirror | Off / On | ||||
Privacy Masking | Off / On (4 Area, Rectangle) | ||||
Audio | |||||
Compression | N/A | ||||
Network | |||||
Ethernet | RJ-45 (10/100Base-T) | ||||
Protocol | HTTP;HTTPs;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPoE;IPv4/v6; QoS;UPnP;NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;TLS |
||||
Interoperability | ONVIF Profile S&G, API | ||||
Streaming Method | Unicast / Multicast | ||||
Max. User Access | 10 Users / 20 Users | ||||
Edge Storage | NAS | ||||
Local PC for Instant Recording | |||||
Web Viewer | IE, Chrome, Firefox, Safari | ||||
Management Software | Smart PSS, DSS, DMSS | ||||
Smart Phone | IOS, Android | ||||
Interface | |||||
Video Interface | N/A | ||||
Audio Interface | N/A | ||||
RS485 | N/A | ||||
Alarm | N/A | ||||
Electrical | |||||
Power Supply | DC12V, PoE (802.3af)(Class 0) | ||||
Power Consumption | < 5.5W | ||||
Environmental | |||||
Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH | ||||
Strorage Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH | ||||
Ingress Protection | IP67 | ||||
Vandal Resistance | N/A | ||||
Construction | |||||
Casing | Metal+Plastic | ||||
Dimensions | Φ108mm×84.9mm(4.25”x3.15”) | ||||
Net Weight | 0.23Kg(0.51lb) | ||||
Gross Weight | 0.387Kg(0.85lb) |
