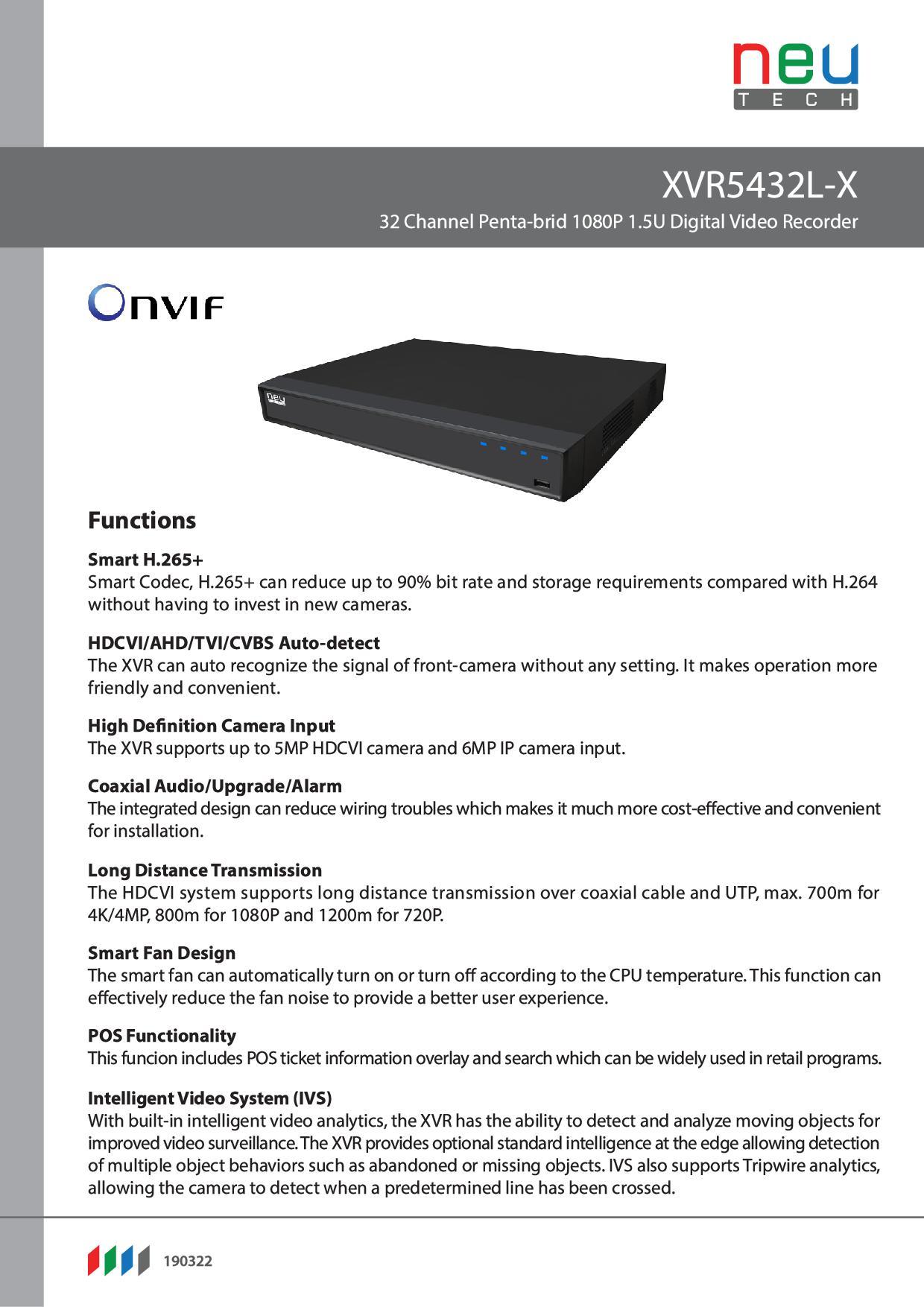

เครื่องบันทึกภาพ(32 Channel) XVR5432L-X
Specification

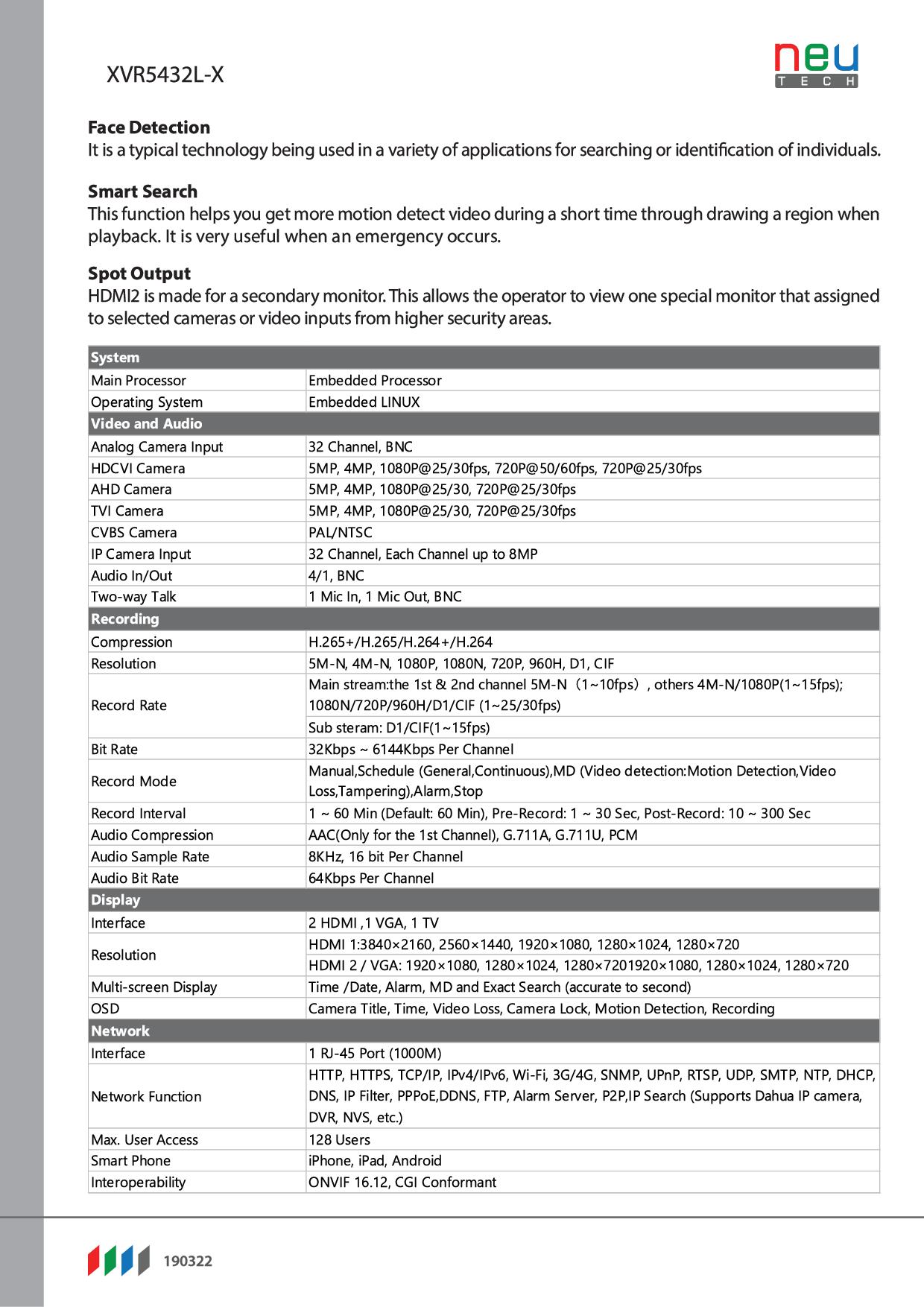

| System | |
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
| Video and Audio | |
| Analog Camera Input | 32 Channel, BNC |
| HDCVI Camera | 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps |
| AHD Camera | 5MP, 4MP, 1080P@25/30, 720P@25/30fps |
| TVI Camera | 5MP, 4MP, 1080P@25/30, 720P@25/30fps |
| CVBS Camera | PAL/NTSC |
| IP Camera Input | 32 Channel, Each Channel up to 8MP |
| Audio In/Out | 4/1, BNC |
| Two-way Talk | 1 Mic In, 1 Mic Out, BNC |
| Recording | |
| Compression | H.265+/H.265/H.264+/H.264 |
| Resolution | 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF |
| Record Rate | Main stream:the 1st & 2nd channel 5M-N（1~10fps）, others 4M-N/1080P(1~15fps); 1080N/720P/960H/D1/CIF (1~25/30fps) |
| Sub steram: D1/CIF(1~15fps) | |
| Bit Rate | 32Kbps ~ 6144Kbps Per Channel |
| Record Mode | Manual,Schedule (General,Continuous),MD (Video detection:Motion Detection,Video Loss,Tampering),Alarm,Stop |
| Record Interval | 1 ~ 60 Min (Default: 60 Min), Pre-Record: 1 ~ 30 Sec, Post-Record: 10 ~ 300 Sec |
| Audio Compression | AAC(Only for the 1st Channel), G.711A, G.711U, PCM |
| Audio Sample Rate | 8KHz, 16 bit Per Channel |
| Audio Bit Rate | 64Kbps Per Channel |
| Display | |
| Interface | 2 HDMI ,1 VGA, 1 TV |
| Resolution | HDMI 1:3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720 |
| HDMI 2 / VGA: 1920×1080, 1280×1024, 1280×7201920×1080, 1280×1024, 1280×720 | |
| Multi-screen Display | Time /Date, Alarm, MD and Exact Search (accurate to second) |
| OSD | Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording |
| Network | |
| Interface | 1 RJ-45 Port (1000M) |
| Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.) |
| Max. User Access | 128 Users |
| Smart Phone | iPhone, iPad, Android |
| Interoperability | ONVIF 16.12, CGI Conformant |

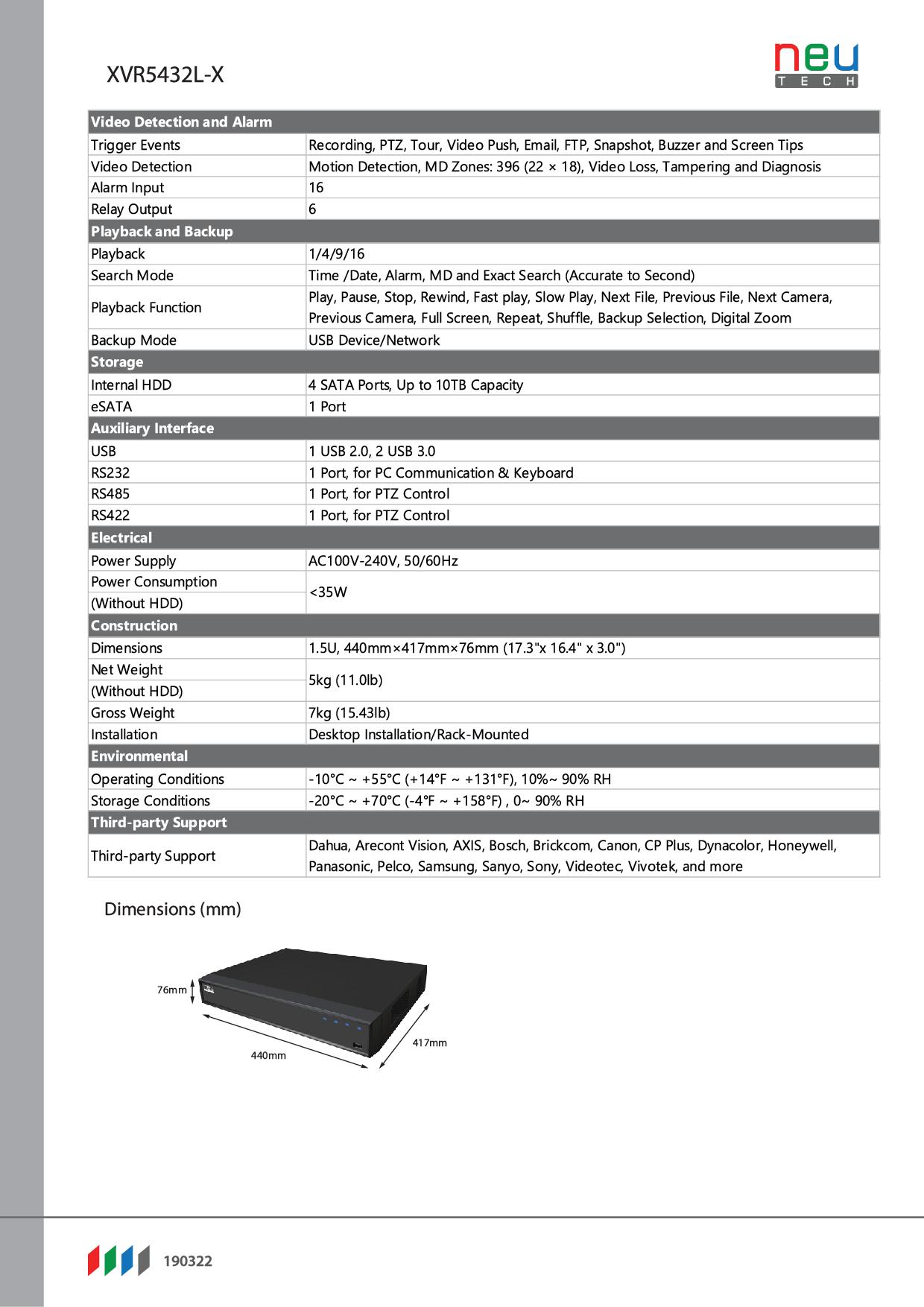

| Video Detection and Alarm | |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis |
| Alarm Input | 16 |
| Relay Output | 6 |
| Playback and Backup | |
| Playback | 1/4/9/16 |
| Search Mode | Time /Date, Alarm, MD and Exact Search (Accurate to Second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
| Backup Mode | USB Device/Network |
| Storage | |
| Internal HDD | 4 SATA Ports, Up to 10TB Capacity |
| eSATA | 1 Port |
| Auxiliary Interface | |
| USB | 1 USB 2.0, 2 USB 3.0 |
| RS232 | 1 Port, for PC Communication & Keyboard |
| RS485 | 1 Port, for PTZ Control |
| RS422 | 1 Port, for PTZ Control |
| Electrical | |
| Power Supply | AC100V-240V, 50/60Hz |
| Power Consumption | <35W |
| (Without HDD) | |
| Construction | |
| Dimensions | 1.5U, 440mm×417mm×76mm (17.3″x 16.4″ x 3.0″) |
| Net Weight | 5kg (11.0lb) |
| (Without HDD) | |
| Gross Weight | 7kg (15.43lb) |
| Installation | Desktop Installation/Rack-Mounted |
| Environmental | |
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 10%~ 90% RH |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH |
| Third-party Support | |
| Third-party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more |
