Soyal AR-331
Metal Access Controller เครื่องสแกนลายนิ้วมือ Finger Scan Soyal AR-331 ควบคุมการเข้าถึงแบบสแตนด์อโลน Color LED เครื่องอ่านการ์ดในตัว
คุณสมบัติ
- รองรับ 1,500 ลายนิ้วมือ
- รองรับ 16,000 บัตร
- บันทึกรายการเข้า-ออกได้ 32,000 รายการ
Features
- RS-485 communication interface
- Supporting WG port for anti-pass-back function
- Selectable working frequencies: 125kHz
- 3 access modes: Card only, Card or PIN, Card and PIN
- Built-in Watchdog to prevent system from abnormal end
- Built-in Real Time Clock & Anti-Tamper functions
- Including the input of door contact, offering the alarm system when door is opened too long or forced to open
- Built-in Dual-Output: Door Lock(support Security trigger signal)/ Alarm
- 11 sets of Time Zone for various accessing in network
- 2 sets of Auto-Open Zone editable by stand-alone operation
- Intelligent switch function, AR-331H will switch to stand-alone or networking mode according to the system connection smartly
- Auto-lock of the keypad for 30 seconds after continuous failed operation by 3 times
- AR-331H with software provides further applications such as access control, time attendance, payroll and image-monitor
- Flexible to integrate with other equipment
- Illuminative Keys, 2 LED and ; 1 beeper for identification
- Use the illuminated Touch-panel for keypad, bring the new trend for access control.
- Metal Housing, fashion and the safety design.
- Narrow body design, suitable for installation in space limited areas.

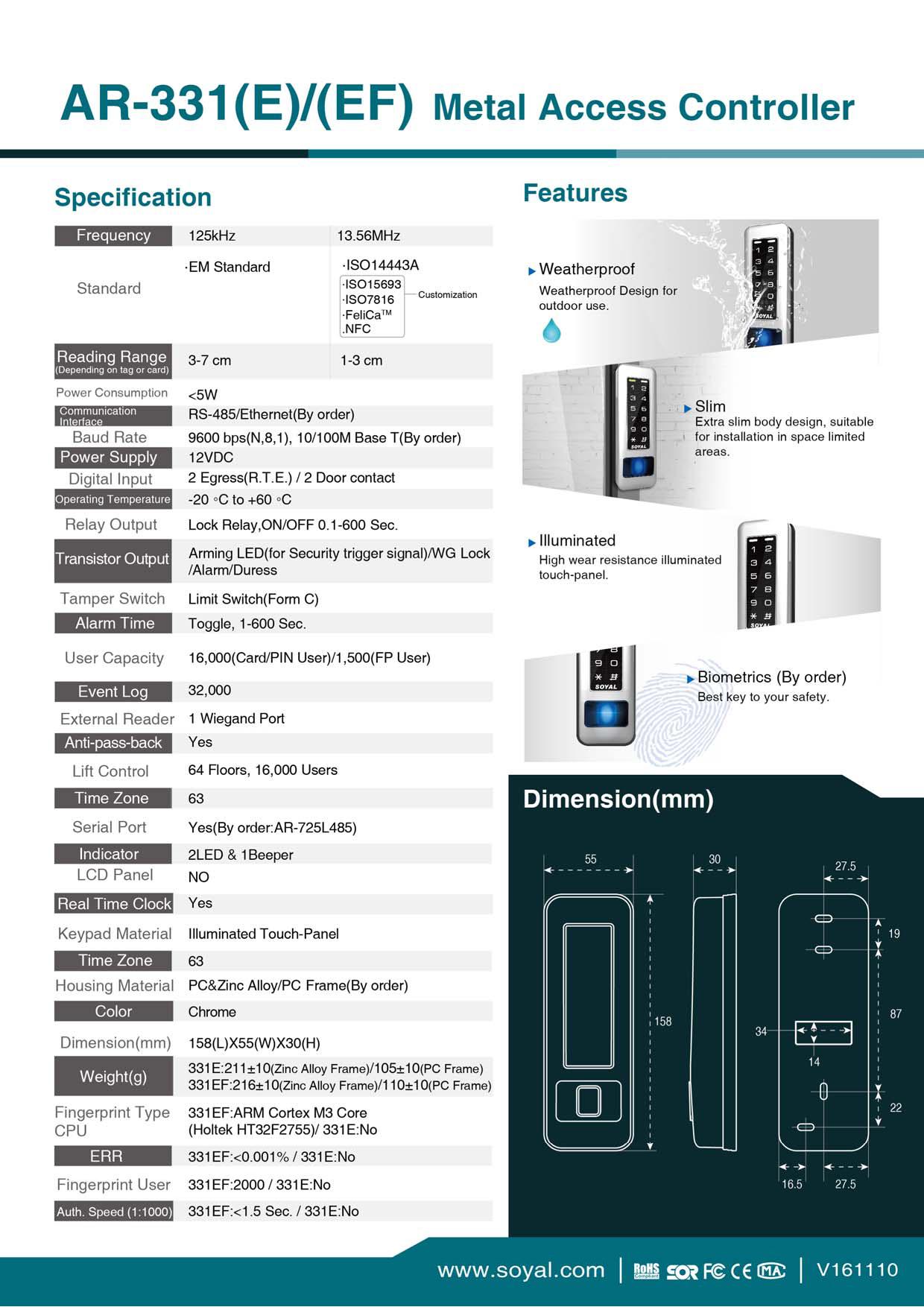

Specification
Frequency | 125kHz or HID Prox II or 13.56MHz or Dual Band (125kHz+13.56MHz) or Triple Bual (125kHz+HID Prox II+13.56MHz) |
Standard | 125kHz : EM Standard |
HID Prox(Option) | |
Indala Prox(Option) | |
13.56MHz : ISO14443A | |
ISO7816(Option) | |
DESFire(Option) | |
FeliCa(Option) | |
NFC(Option) | |
Reading Range | 125kHz : 3-7cm |
13.56MHz : 1-3cm | |
Power Supply | 10-24VDC |
Power Consumption | < 5W |
Communication Interface | RS-485 (Ethernet by Order) |
Data Transfer Rate | 9,600 bps(N,8,1) + 10/100M Base T |
Operating Temperature | 0℃ to +60℃ |
Digital Input | Egress(R.T.E.) x 2 / Door contact x 2 |
Relay Output | Alarm Relay / Lock Relay |
Lock Relay Time | Toggle, 0.1~600 Sec. |
Alarm Time | Toggle, 1~600 Sec. |
Tamper Switch | Limit Switch(Form C) |
Card User Capacity | 16,000/32,000/65,000 Users , 64/32/16 floors |
Event Log | 32,000 |
External Reader | 1 WG Port |
Anti-pass-back | Yes |
Lift Control | 16,000/32,000/65,000 Users , 64/32/16 floors |
Serial Port | Yes |
Real Time Clock | Yes |
LCD Panel | No |
Transistor Output | Arming LED / Alarm / Duress / WG Lock Relay / Security trigger signal |
Protection Standard | IP65 |
Indicator | 2 LED & 1 Beeper |
Keypad Material | Illuminated Touch-panel |
Housing Material | Zinc Alloy |
Door Bell | No |
Time Zone | 11/63(Connect to Multi-Door Networking Controller |
Operation Mode | Stand-Alone / Networking |
Color | Chrome |
Dimensions(mm) | 158(L)X55(W)X30(H) |
Weight (g) | 216±10(Zinc Alloy Frame)/110±10(PC Frame) |
FRR | <0.001% |
Finger Registration Capacity | 1,500 (500 users) |
Auth. Speed (1:1000) | <1.5 sec. |
Operating Illuminance | 0℃ to +60℃ |
By order | Voice Module (Option) / HID Module (Option) |
