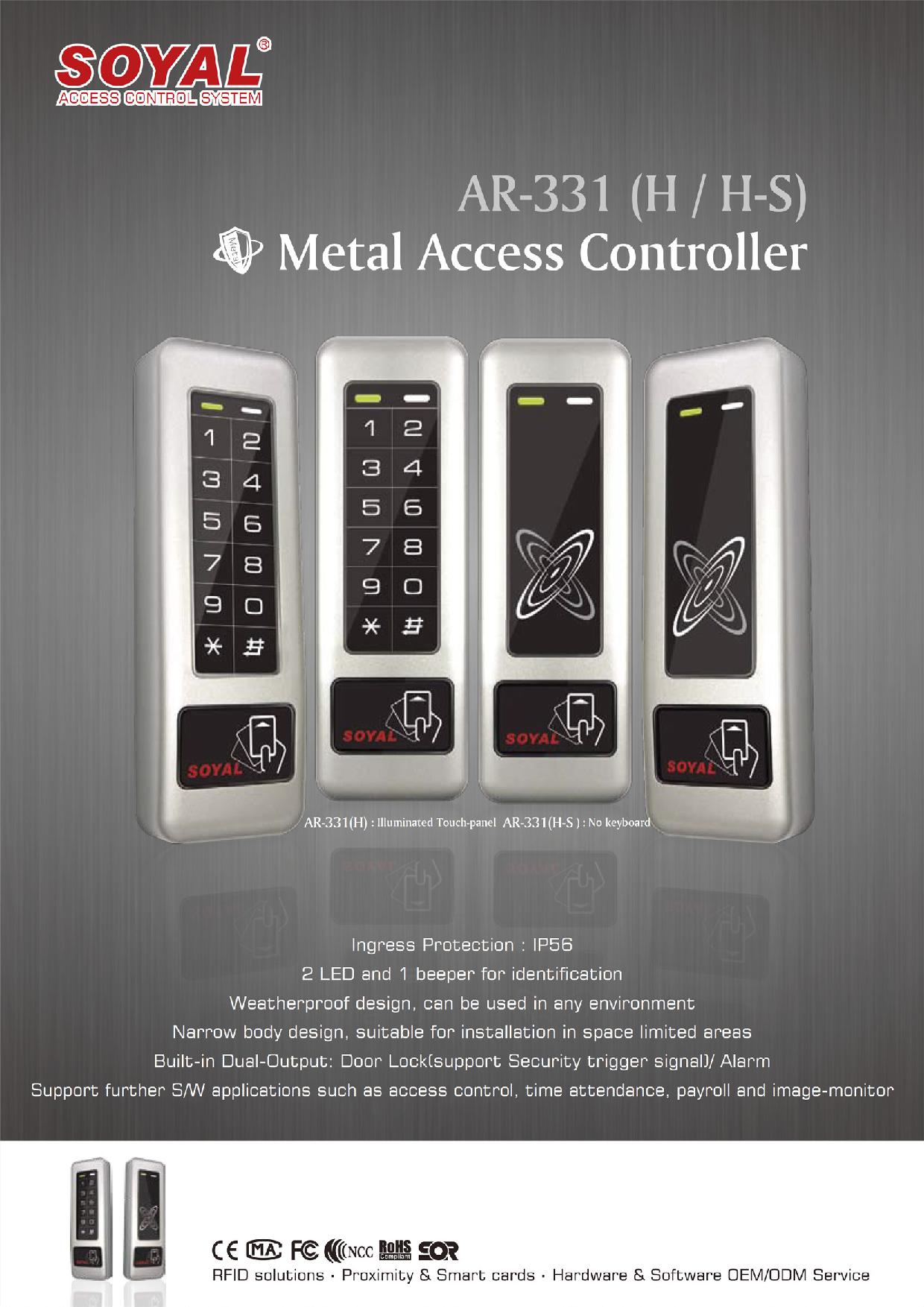

Soyal AR-331H
Proximity Controller เครื่องทาบบัตร Soyal AR-331H ควบคุมการเข้าถึงแบบสแตนด์อโลน Color LED เครื่องอ่านการ์ดในตัว
คุณสมบัติ
- รองรับ 3,000 บัตร
- บันทึกรายการเข้า-ออกได้ 1,500 รายการ
Features
- RS-485 communication interface
- Supporting WG port for anti-pass-back function
- Selectable working frequencies: 125kHz
- 3 control modes: M4/ M6/ M8
- User capacity: 3,0004; Event log: 1,500
- 3 access modes: Card only, Card or PIN, Card and PIN
- Built-in Watchdog to prevent system from abnormal end
- Built-in Real Time Clock & Anti-Tamper functions
- Including the input of door contact, offering the alarm system when door is opened too long or forced to open
- Built-in Dual-Output: Door Lock(support security trigger signal)/ Alarm
- 11 sets of Time Zone for various accessing in network
- 2 sets of Auto-Open Zone editable by stand-alone operation
- Intelligent switch function, AR-331H will switch to stand-alone or networking mode according to the system connection smartly
- Auto-lock of the keypad for 30 seconds after continuous failed operation by 3 times
- AR-331H with software provides further applications such as access control, time attendance, payroll and image-monitor
- Flexible to integrate with other equipment
- Illuminative keys, 2 LED and 1 beeper for identification
- Use the illuminated touch-panel for keypad, bring the new trend for access control
- Narrow body design, suitable for installation in space limited areas.

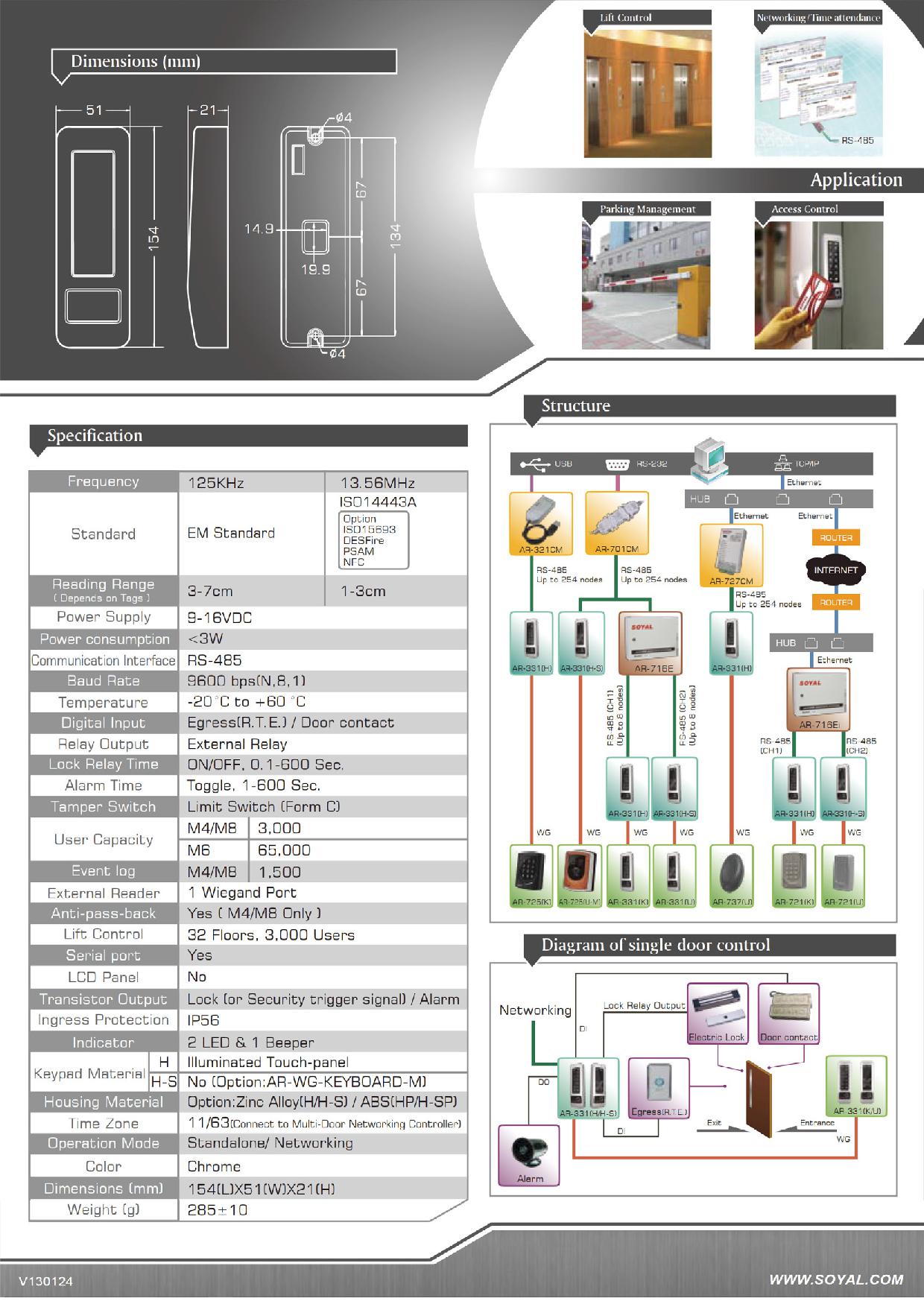

Specification
| Frequency | 125kHz or 13.56MHz |
| Standard | 125kHz : EM Standard |
| 13.56MHz : ISO14443A | |
| ISO15693(Option) | |
| DESFire(Option) | |
| PSAM(Option) | |
| NFC(Option) | |
| Reading Range | 125kHz : 3-7cm |
| 13.56MHz : 1-3cm | |
| Power Supply | 9-24VDC |
| Power Consumption | < 3W |
| Communication Interface | RS-485 |
| Data Transfer Rate | 9600 bps(N,8,1) |
| Operating Temperature | –20℃ TO +60℃ |
| Digital Input | Egress(R.T.E.) / Door contact |
| Relay Output | No |
| Lock Relay Time | Toggle, 0.1~600 Sec. |
| Alarm Time | Toggle, 1~600 Sec. |
| Tamper Switch | Limit Switch(Form C) |
| User Capacity | M4 / M8 : 3,000 |
| M6 : 65,000 | |
| Event Log | 1,500 |
| External Reader | 1 WG Port |
| Anti-pass-back | Yes(Only M4/M8) |
| Lift Control | 32 Floors, 3,000 Users |
| Serial Port | Yes |
| Real Time Clock | Yes |
| LCD Panel | No |
| Door Bell Button | No |
| Transistor Output | Lock(or Security trigger signal) / Alarm |
| Protection Standard | IP56 |
| Indicator | 2 LED & 1 Beeper |
| Keypad Material | Illuminated Touch-panel |
| Housing Material | PC |
| Time Zone | 11/63(Connect to Multi-Door Networking Controller) |
| Operation Mode | Stand-Alone / Networking |
| Color | Chrome |
| Dimensions(mm) | 154(L)X51(W)X21(H) |
| Weight(g) | 285±10 |
