Soyal AR-721K

Wiegand Reader  เครื่องทาบบัตร  Soyal  AR-721K ควบคุมการเข้าถึงแบบสแตนด์อโลน  color LED เครื่องอ่านการ์ดในตัว

Features

  • Keypad Reader, the access mode can increase the use of passwords
  • With an external keypad controller, to set the instruction in this controller
  • Flexible to integrate with SOYAL or other access control system
  • Interface of the Proximity Reader have WG and ABA-II etc., depending on the controller to make adjustments
  • 1 bi-color LED and 1 beeper for identification
  • Built-in Watchdog to prevent system from hanging

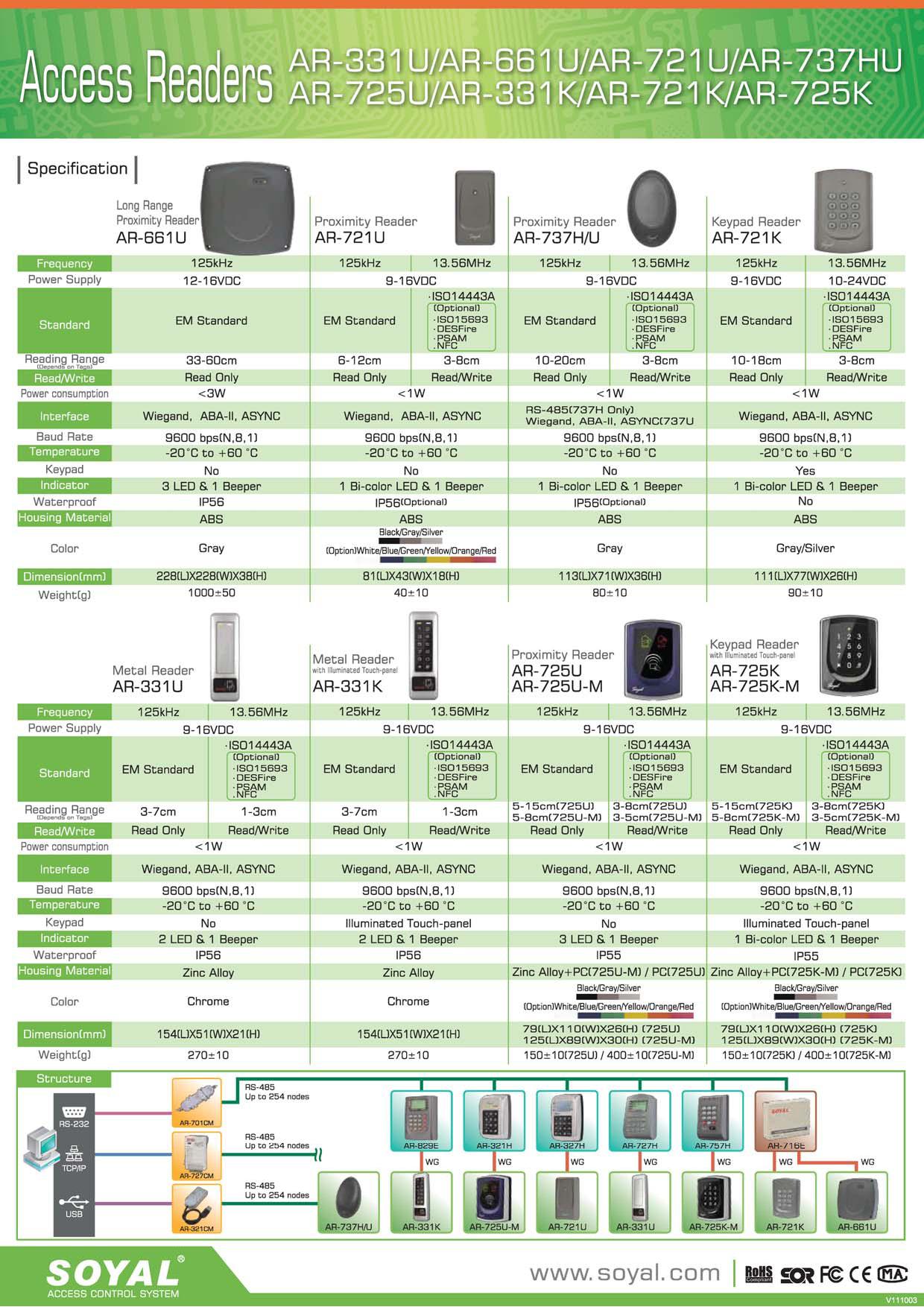

Specification

Frequency 125kHz or 13.56MHz
Power Supply 125kHz : 9-16VDC
13.56MHz : 10-24VDC
Standard 125kHz : EM Standard
13.56MHz : ISO14443A
                     ISO15693(Option)
                     DESFire(Option)
                     PSAM(Option)
                     NFC(Option)
Reading Range 125kHz : 10-18cm
13.56MHz : 3-8cm
Read / Write 125kHz : Read Only
13.56MHz : Read+Write
Supported Tage 125kHz : EM 4001 / EM 4012
13.56MHz : MIFARE Ultra Light(10)
                     MIFARE Standard(S50)
                     MIFARE Plus(P60)
Power Consumption < 1W
Communication Interface Wiegand
ABA-II
ASYNC
Data Transfer Rate 9600 bps(N,8,1)
Operating Temperature -20℃ to +60℃
Keypad Material Rubber
Indicator 1 Bi-Color LED & 1 Beeper
Protection Standard No
Housing Material ABS
Color Gray / Silver
Dimensions(mm) 111(L)X77(W)X26(H)
Weight(g) 90±10
