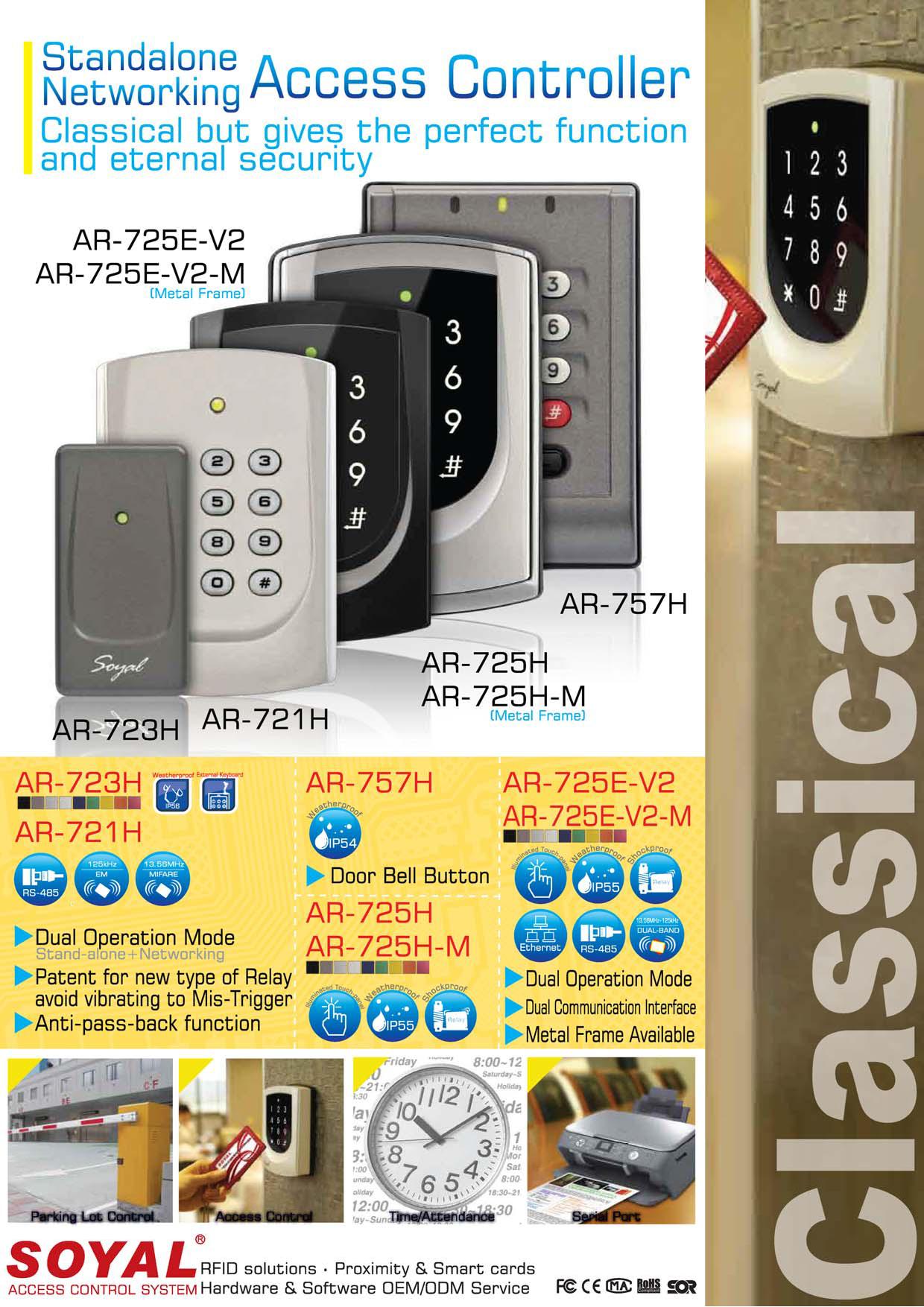

Soyal AR-725H
Proximity Controller เครื่องทาบบัตร Soyal AR-725H ควบคุมการเข้าถึงแบบสแตนด์อโลน Color LED เครื่องอ่านการ์ดในตัว
คุณสมบัติ
- รองรับ 3,000 บัตร
- บันทึกรายการเข้า-ออกได้ 1,500 รายการ
Features
- RS-485 communication interface
- Supporting WG port for anti-pass-back function
- TTL serial output for various application and lift control
- Selectable working frequencies: 125KHz/13.56MHz
- 3 control modes: M4/ M6 /M8
- User capacity: 3,000; Event log: 1,500
- 3 access modes: Card only, Card or PIN, Card and PIN
- Built-in Watchdog to prevent system from hanging
- Built-in Real Time Clock & Anti-Tamper function
- Including the input of door contact, offering the alarm system of both door opening too long and being forced to open
- Built-in Multi-Output: Door Lock/ Alarm/ Arming/ Duress/ Security trigger signal
- 11 sets of Time Zone for various accessing in network
- 2 sets of Auto-Open Zone editable by stand-alone operation
- Intelligent to shift for stand-alone or networking mode while system disconnected
- Auto-lock of the keypad for 30 seconds after continuous failed operation by 3 times
- Coordinating with softwares for further application on access control, time attendance, payroll, and door/sensor image-monitor function
- Flexible to integrate with other equipment
- Illuminative Keys, 1 bi-color LED and 1 beeper for identification
- Illuminated Touch-Panel and elegant design with colorful housing to choose
- Metal frame to avoid violence (AR-725H-M)
- Patent for new type of Relay, avoiding vibrating to Mis-trigger

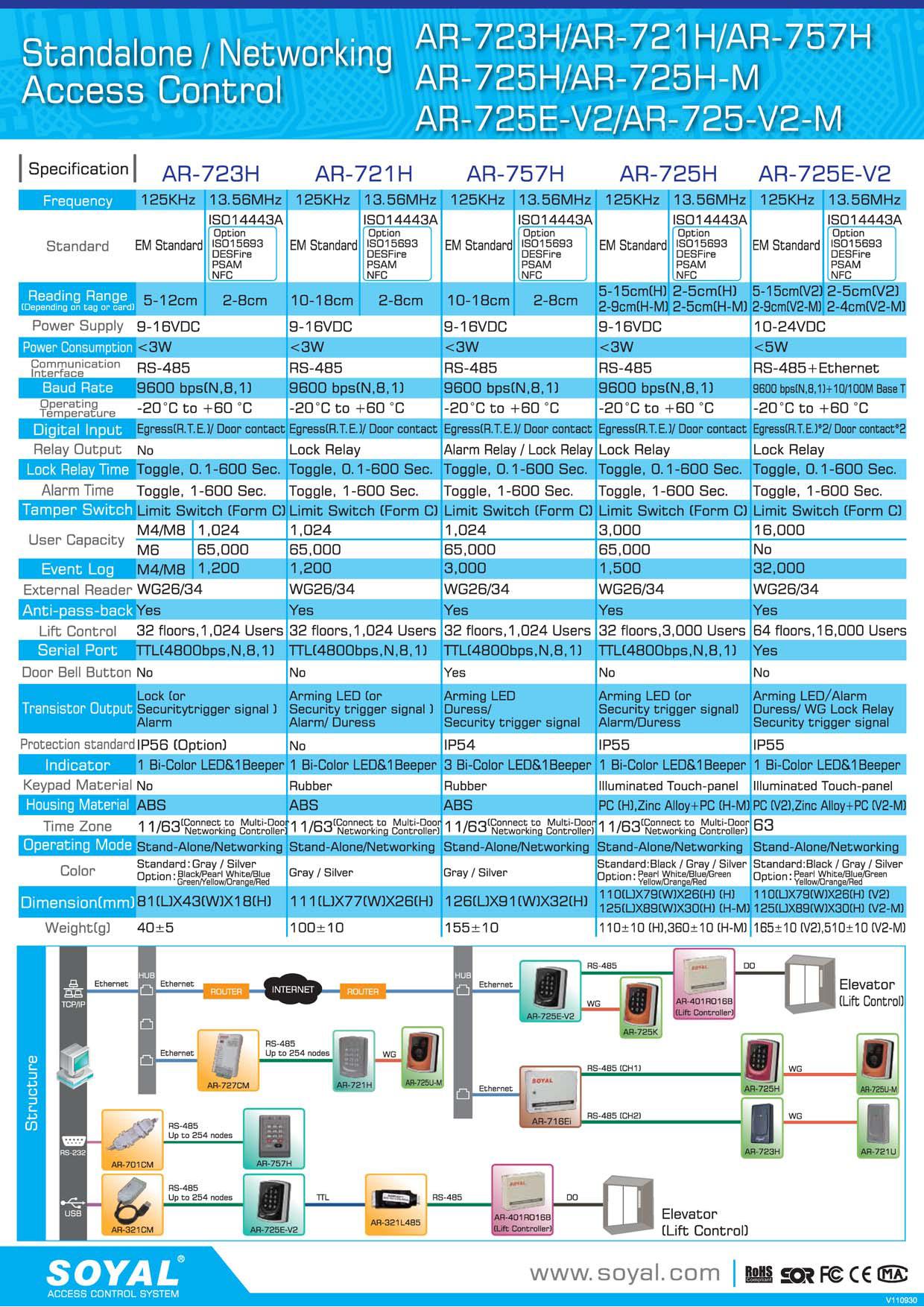

Specification
| Frequency | 125kHz or 13.56MHz |
| Standard | 125kHz : EM Standard |
| 13.56MHz : ISO14443A | |
| ISO15693(Option) | |
| DESFire(Option) | |
| PSAM(Option) | |
| NFC(Option) | |
| Reading Range | 125kHz : 10-15cm(H) / 5-9cm(H-M) |
| 13.56MHz : 2-8cm(H) / 2-5cm(H-M) | |
| Power Supply | 9-16VDC |
| Power Consumption | < 3W |
| Communication Interface | RS-485 |
| Data Transfer Rate | 9600 bps(N,8,1) |
| Operating Temperature | –20℃ TO +60℃ |
| Digital Input | Egress(R.T.E.) / Door contact |
| Relay Output | Lock Relay |
| Lock Relay Time | Toggle, 0.1~600 Sec. |
| Alarm Time | Toggle, 1~600 Sec. |
| Tamper Switch | Limit Switch(Form C) |
| User Capacity | M4 / M8 : 3,000 |
| M6 : 65,000 | |
| Event Log | 1,500 |
| External Reader | 1 WG Port |
| Anti-pass-back | Yes |
| Lift Control | 32 Floors, 3,000 Users |
| Serial Port | Yes |
| Real Time Clock | Yes |
| LCD Panel | No |
| Door Bell Button | No |
| Transistor Output | Arming LED / Alarm / Duress / Security trigger signal |
| Protection Standard | IP55 |
| Indicator | 1 Bi-Color LED & 1 Beeper |
| Keypad Material | Illuminated Touch-panel |
| Housing Material | H : PC |
| H-M : Zinc Alloy+PC | |
| Time Zone | 11/63(Connect to Multi-Door Networking Controller) |
| Operation Mode | Stand-Alone / Networking |
| Color | Standard : Black / Gray / Silver |
| Option : Pearl White / Blue / Green / Yellow / Orange / Red | |
| Dimensions(mm) | H : 110(L)X79(W)X26(H) |
| H-M : 125(L)X89(W)X30(H) | |
| Weight(g) | H :110±10 |
| H-M : 360±10 | |
| Patent | Patent for new type of Relay |
| Patent Number: M 333650(Taiwan) ZL 2008 2 0055140.9(China) |
