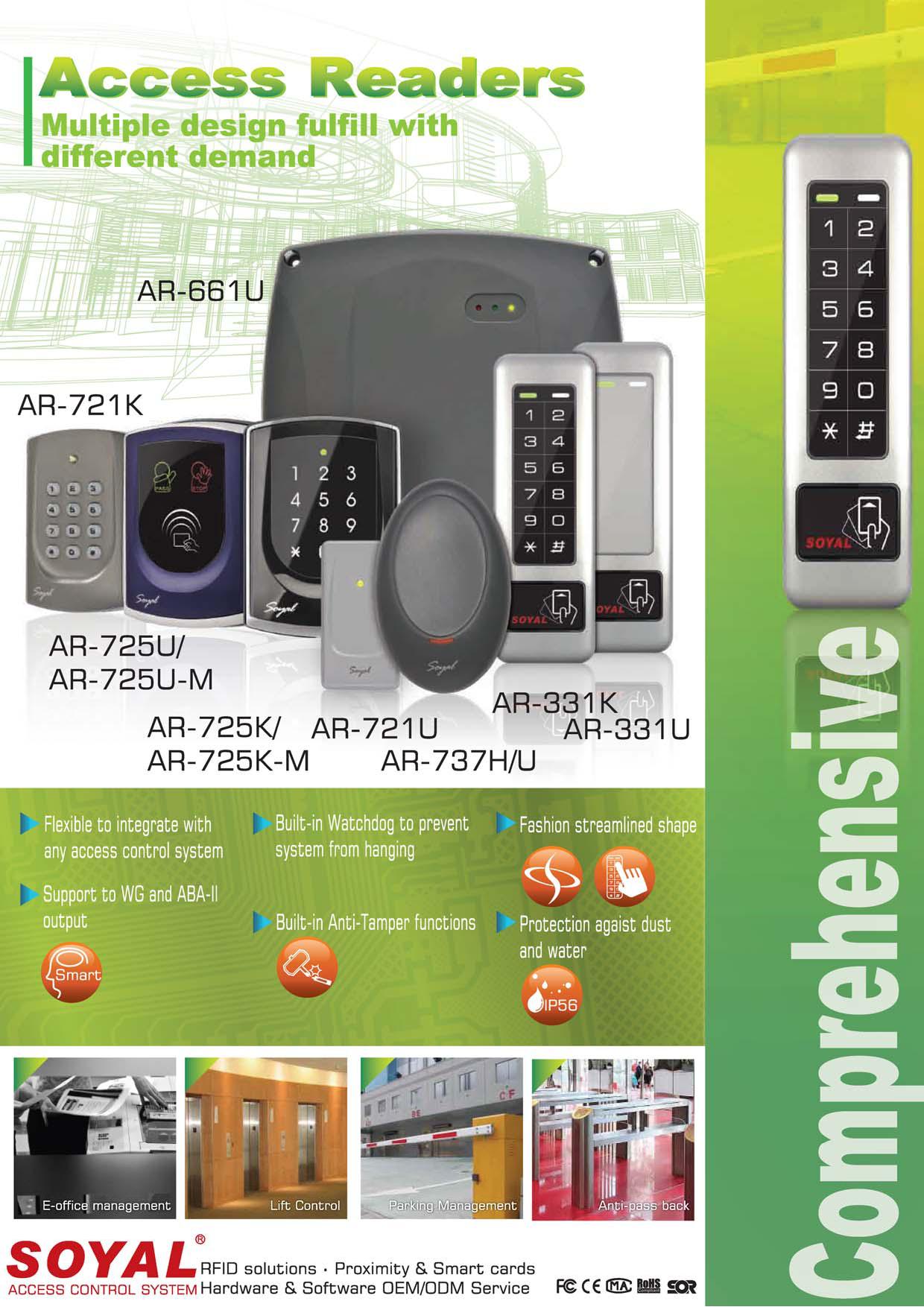

Soyal AR-725K
Wiegand Reader เครื่องทาบบัตร Soyal AR-725K ควบคุมการเข้าถึงแบบสแตนด์อโลน Color LED เครื่องอ่านการ์ดในตัว
Features
- Flexible to integrate with SOYAL or other access control system
- Interface of the Proximity Reader have WG and ABA-II etc., depending on the controller to make adjustments. And can optional the RS-232 or the RS-485
- 1 bi-color LED and 1 beeper for identificati
- Built-in Watchdog to prevent system from hanging
- Illuminative Keys,1 bi-color indicator, and 1 beeper for identification
- Illuminated Touch-Panel and elegant design with colorful housing to choose

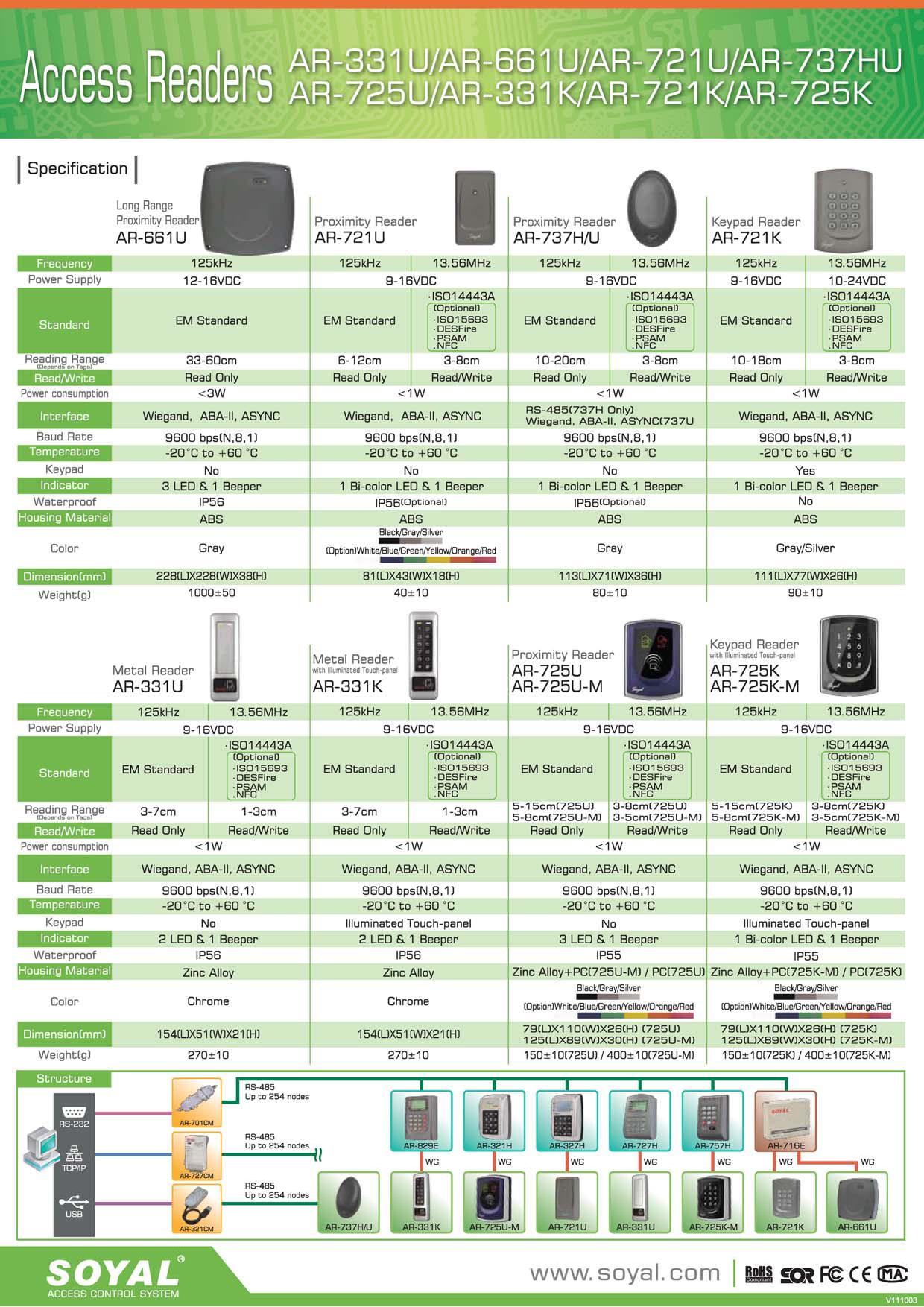

Specification
| Frequency | 125kHz or 13.56MHz |
| Power Supply | 9-16VDC |
| Standard | 125kHz : EM Standard |
| 13.56MHz : ISO14443A | |
| ISO15693(Option) | |
| DESFire(Option) | |
| PSAM(Option) | |
| NFC(Option) | |
| Reading Range | 125kHz : 10-15cm(K) / 5-9cm(K-M) |
| 13.56MHz : 3-8cm(K) / 3-5cm(K-M) | |
| Read / Write | 125kHz : Read Only |
| 13.56MHz : Read+Write | |
| Supported Tage | 125kHz : EM 4001 / EM 4012 |
| 13.56MHz : MIFARE Ultra Light(10) | |
| MIFARE Standard(S50) | |
| MIFARE Plus(P60) | |
| Power Consumption | < 1W |
| Communication Interface | Wiegand |
| ABA-II | |
| ASYNC | |
| Data Transfer Rate | 9600 bps(N,8,1) |
| Operating Temperature | -20℃ to +60℃ |
| Keypad Material | Illuminated Touch-panel |
| Indicator | 1 Bi-Color LED & 1 Beeper |
| Protection Standard | IP55 |
| Housing Material | K : PC |
| K-M : Zinc Alloy+PC | |
| Color | Standard : Black / Gray / Silver |
| Option : Pearl White / Blue / Green / Yellow / Orange / Red | |
| Dimensions(mm) | K : 110(L)X79(W)X26(H) |
| K-M : 125(L)X89(W)X30(H) | |
| Weight(g) | K :150±10 |
| K-M : 400±10 |
