Soyal AR-725U

Wiegand Reader  เครื่องทาบบัตร  Soyal  AR-725K  ควบคุมการเข้าถึงแบบสแตนด์อโลน  Color LED เครื่องอ่านการ์ดในตัว

Features

  • Flexible to integrate with SOYAL or other access control system
  • Interface of the Proximity Reader have WG and ABA-II etc., depending on the controller to make adjustments. And can optional the RS-232 or the RS-485
  • 3 LED and 1 beeper for identification
  • Built-in Watchdog to prevent system from hanging
  • Lively image indicator, make life more function

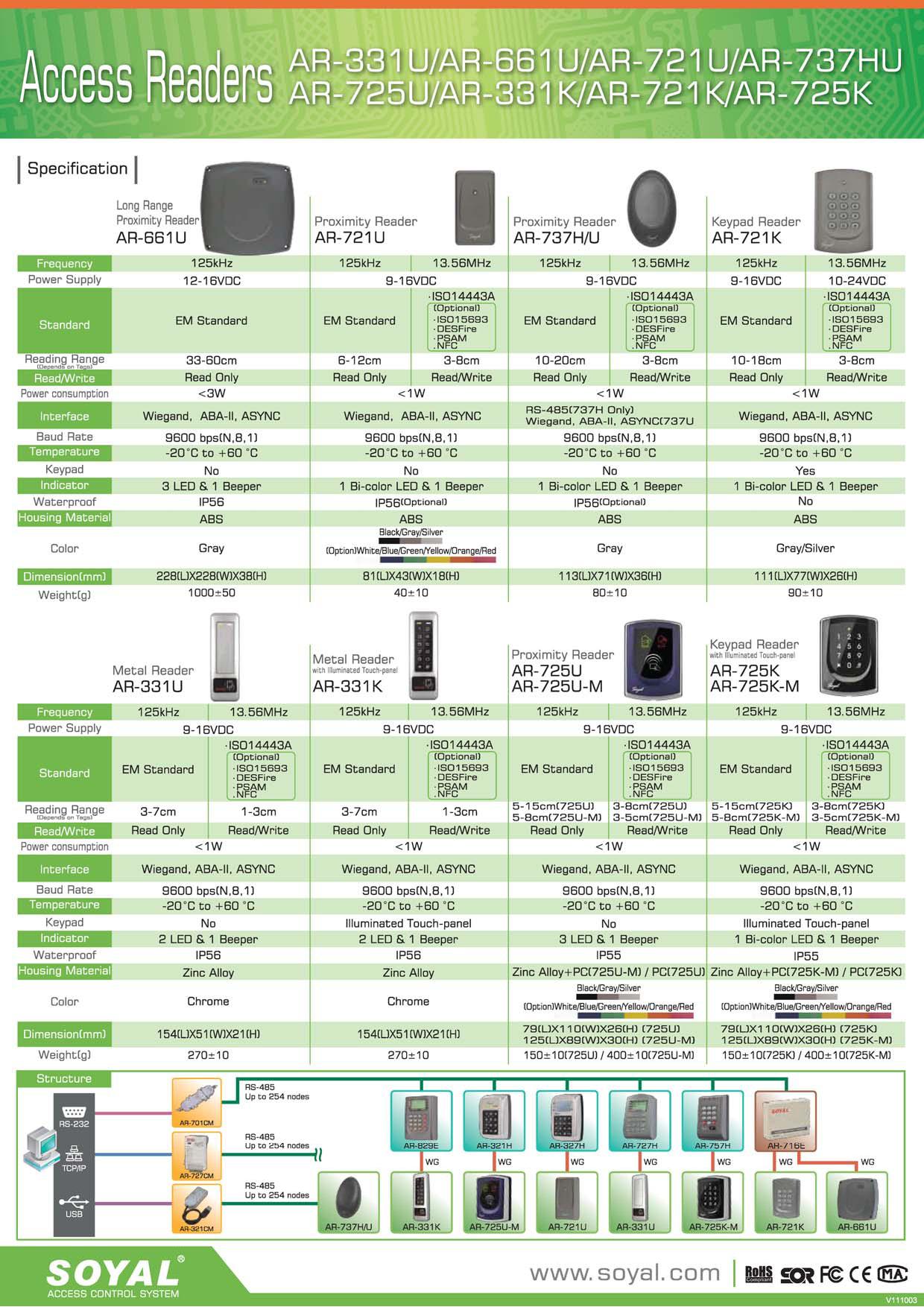

Specification

Frequency 125kHz or 13.56MHz
Power Supply 9-16VDC
Standard 125kHz : EM Standard
13.56MHz : ISO14443A
                     ISO15693(Option)
                     DESFire(Option)
                     PSAM(Option)
                     NFC(Option)
Reading Range 125kHz : 10-15cm(U) / 5-9cm(U-M)
13.56MHz : 3-8cm(U) / 3-5cm(U-M)
Read / Write 125kHz : Read Only
13.56MHz : Read+Write
Supported Tage 125kHz : EM 4001 / EM 4012
13.56MHz : MIFARE Ultra Light(10)
                     MIFARE Standard(S50)
                     MIFARE Plus(P60)
Power Consumption < 1W
Communication Interface Wiegand
ABA-II
ASYNC
Data Transfer Rate 9600 bps(N,8,1)
Operating Temperature -20℃ to +60℃
Keypad Material No
Indicator 3 LED & 1 Beeper
Protection Standard IP55
Housing Material U : PC
U-M : Zinc Alloy+PC
Color Standard : Black / Gray / Silver
Option : Pearl White / Blue / Green / Yellow / Orange / Red
Dimensions(mm) U : 110(L)X79(W)X26(H)
U-M : 125(L)X89(W)X30(H)
Weight(g) U :150±10
U-M : 400±10
