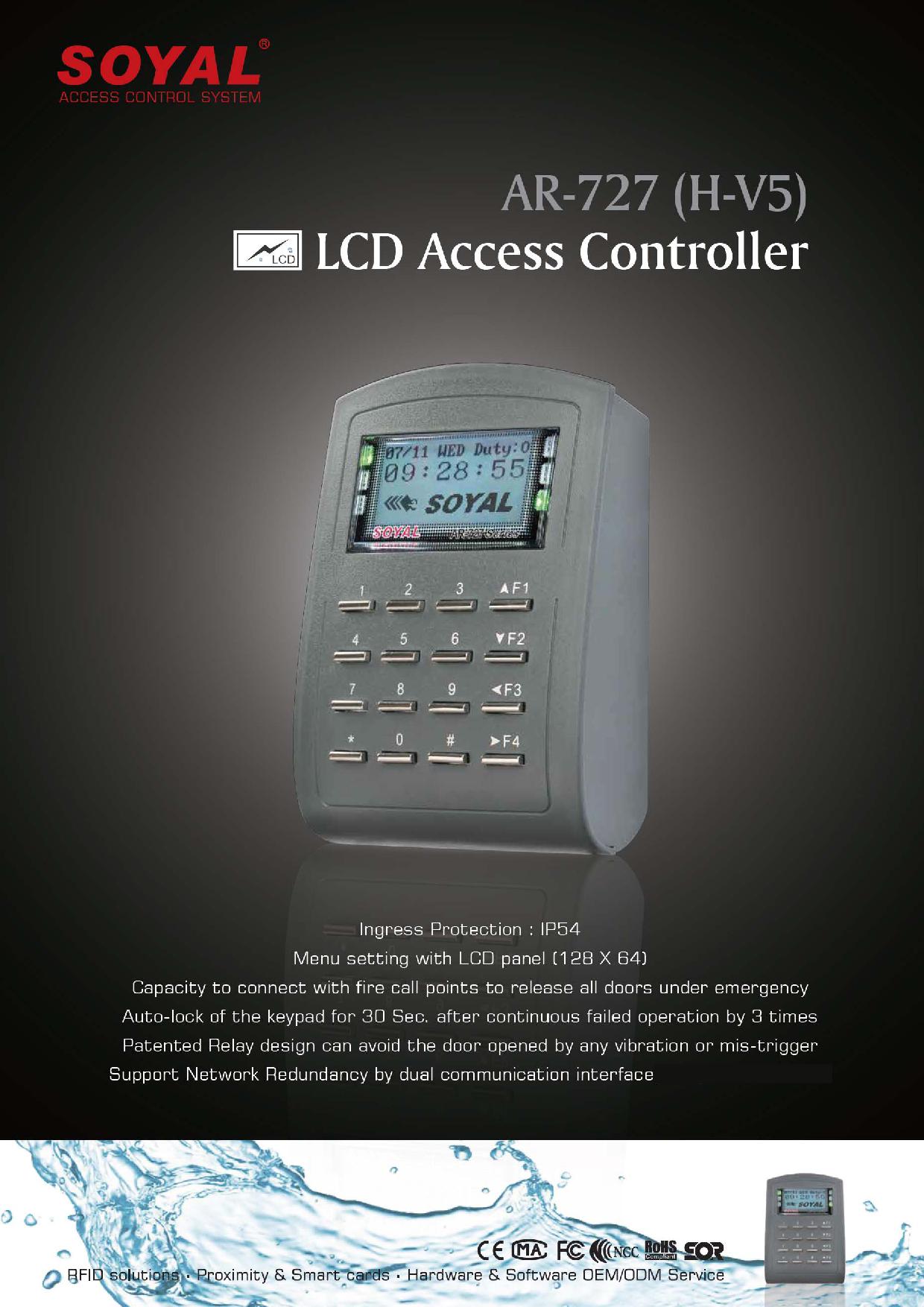

Soyal AR-727H-V5
LCD Access Controller เครื่องทาบบัตร Soyal AR-727H-V5 ควบคุมการเข้าถึงแบบสแตนด์อโลน เครื่องอ่านการ์ดในตัว
คุณสมบัติ
- รองรับ 16,000 บัตร
- บันทึกรายการเข้า-ออกได้ 32,000 รายการ
Features
- RS-485 communication interface
- Built-in Watch Dog to prevent the halting
- User capacity: 16,000; Event logs: 32,000
- 2 control modes: M4/ M8
- Access Mode: Card Only, Card or PWD, Card and PWD
- 63 auto-open zone settings and 16 sets of Auto-Open Zone editable
- WG port provides anti-pass-back function
- One more Exit Switch, Door Contact and Door Output to wiegand
- Built-in Multi-Output: Door Lock/ Alarm/ Arming/ Duress/ Security trigger signal
- SOYAL software support for networking
- Easily integrated with SOYAL or others access control system
- Work attendance check: Push buttons to select Duty on/off work, Leave/Back and Overtime on/off
- Built-in Real Time Clock & Anti-Tamper functions
- Flexible to integrate with other equipments
- 125kHz or 13.56MHz can be used simultaneously two channels
- Patent for new type of Relay, avoid vibrating to Mis-Trigger
- TTL & RS-485 serial output for various application and lift control
- Built-in 16 set of Alarm and 120 days of Holiday setting
- Menu setting with LCD panel
- Coordinating with softwares for further application on access control, time attendance, payroll, anddoor/sensor image-monitor function
- Auto-lock of the keypad for 30 seconds after continuous failed operation by 3 times
- Including the input of door contact, offering the alarm system of both door opening too long and beingforced to open
- Intelligent to shift for standalone or networking mode while system disconnected
- Support Fire buttons to make sure the fire happening, all doors open
- Supporting AR-721_RB Relay Output module alternates traditional relay module, raise security, resist from stealing, and avoid wrong operation.

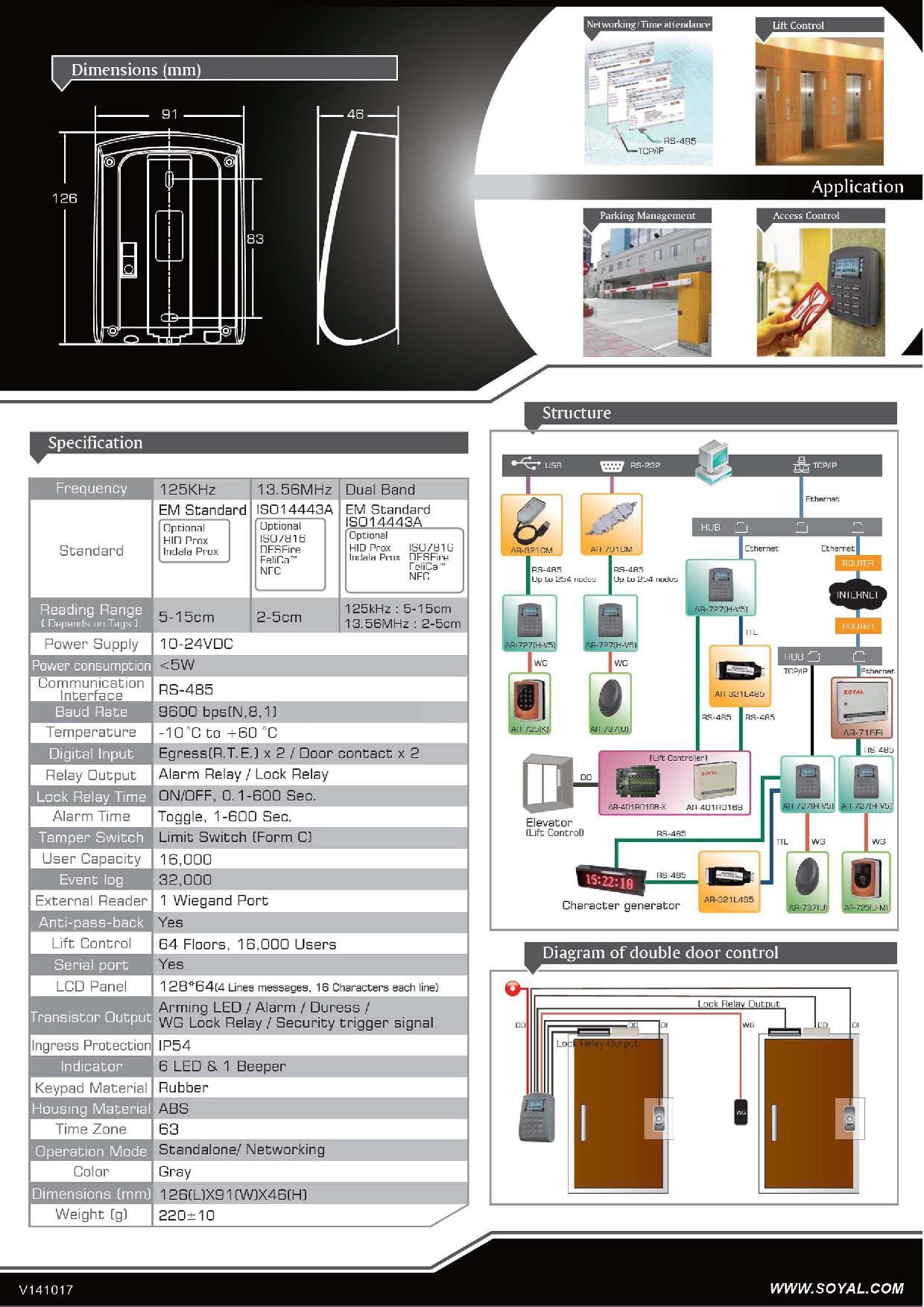

Specification
| Frequency | 125kHz or 13.56MHz or Dual Band (125kHz+13.56MHz) |
| Standard | 125kHz : EM Standard |
| 13.56MHz : ISO14443A | |
| DESFire(Option) | |
| PSAM(Option) | |
| NFC(Option) | |
| Reading Range | 125kHz : 5-15cm |
| 13.56MHz : 2-5cm | |
| Power Supply | 10-24VDC |
| Power Consumption | < 5W |
| Communication Interface | RS-485 (Ethernet by order) |
| Data Transfer Rate | 9600 bps(N,8,1) |
| Operating Temperature | -10℃ to +60℃ |
| Digital Input | Egress(R.T.E.) x 2 / Door contact x 2 |
| Relay Output | Alarm Relay / Lock Relay |
| Lock Relay Time | Toggle, 0.1~600 Sec. |
| Alarm Time | Toggle, 1~600 Sec. |
| Tamper Switch | Limit Switch(Form C) |
| User Capacity | 16000/32000/65000 Users , 64/32/16 floors |
| Event Log | 32,000 |
| External Reader | 1 WG Port |
| Anti-pass-back | Yes |
| Lift Control | 16000/32000/65000 Users , 64/32/16 floors |
| Serial Port | Yes |
| Real Time Clock | Yes |
| LCD Panel | 128 x 64 dot LCD Panel(4Lines messages, 16 Characters /line) |
| Door Bell Button | No |
| Transistor Output | Arming LED / Alarm / Duress / WG Lock Relay / Security trigger signal |
| Protection Standard | IP54 |
| Indicator | 6 LED & 1 Beeper |
| Keypad Material | Rubber |
| Housing Material | ABS |
| Time Zone | 63 |
| Operation Mode | Stand-Alone / Networking |
| Color | Gray |
| Dimensions(mm) | 126(L)X91(W)X46(H) |
| Weight(g) | 220±10 |
| Patent | Patent for new type of Relay |
| Patent Number: M 333650(Taiwan) ZL 2008 2 0055140.9(China) | |
| UID | 4~8 Bytes |
| Alias | 8 or 16 Bytes at 65000 or 16000/32000 users mode |
| User PIN | 4~8 Digital |
