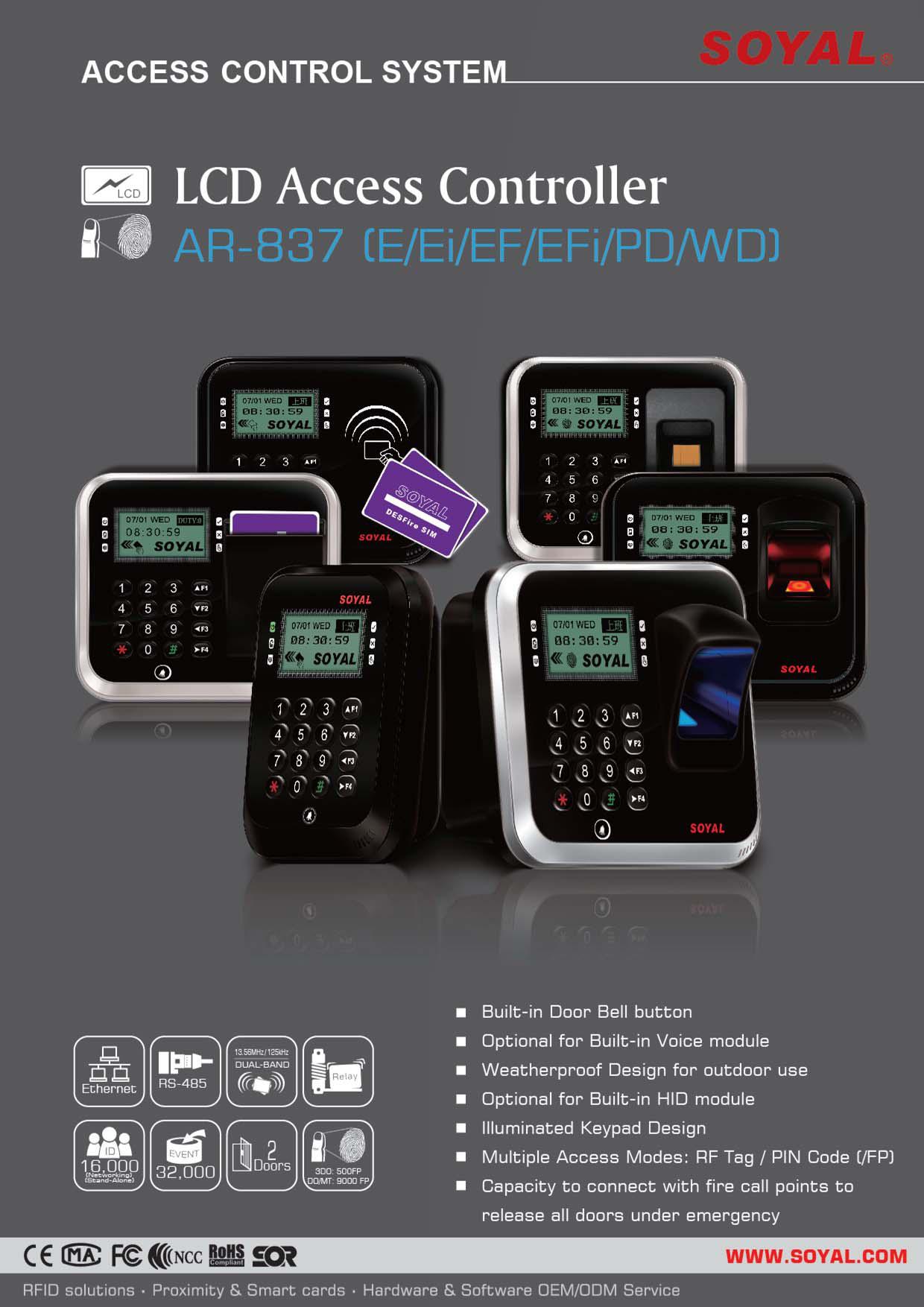

Soyal AR-837EFi-V5
LCD Access Controller เครื่องสแกนลายนิ้วมือ Finger Scan Soyal AR-837EFi-V5 ขั้วลายนิ้วมือควบคุมการเข้าถึงแบบสแตนด์อโลน หน้าจอแสดงผล LED เครื่องอ่านการ์ดในตัวสำหรับการ์ด RFID
คุณสมบัติ
- รองรับ 4,500 ลายนิ้วมือ
- รองรับ 16,000 บัตร
- บันทึกรายการเข้า-ออกได้ 32,000 รายการ
Features
- Capacity to Built-in HID module and HID compilable
- Capacity to Built-in Voice module
- Built-in Door Bell button
- Illuminated Keypad Design for more visual operation
- Weatherproof Design for outdoor use
- High security Biometrics Device, the finger is the only key
- RS-485 and TCP/IP communication interface
- User capacity: 16,000; Event log: 32,000
- Fingerprint-User capacity: 4,500~9,000 (2~1 fingers for each user)
- High recognition rate of fingerprint reader(FRR): <0.1%
- Fingerprint Sensor can option the Optical Sensor(DO) or the Capacitive Sensor(MT)
- Speed (1:N): 0.97Sec.(DO) / 0.65Sec.(MT)
- Access modes: Finger only, Card and Finger, Card or PIN and Finger, Card and PIN and Finger
- Built-in Watch Dog to prevent the halting
- 2 control modes: M4/ M8
- 63 auto-open zone settings and 16 sets of Auto-Open Zone editable
- WG port provides anti-pass-back function
- One more Exit Switch, Door Contact and Door Output to wiegand
- Built-in Multi-Output: Door Lock/ Alarm/ Arming/ Duress/ Security trigger signal
- SOYAL software support for networking
- Easily integrated with SOYAL or others access control system
- Work attendance check: Push buttons to select Duty on/off work, Leave/Back and Overtime on/off
- Built-in Real Time Clock & Anti-Tamper functions
- Flexible to integrate with other equipments
- 125kHz and 13.56MHz can be used simultaneously two channels
- Patent for new type of Relay, avoid vibrating to Mis-Trigger
- RS-485 serial output for various application and lift control
- Built-in 16 set of Alarm and 120 days of holiday setting
- Menu setting with LCD panel
- Coordinating with softwares for further application on access control, time attendance, payroll, and door/sensor image-monitor function
- Auto-lock of the keypad for 30 seconds after continuous failed operation by 3 times
- Including the input of door contact, offering the alarm system of both door opening too long and being forced to open
- Intelligent to shift for standalone or networking mode while system disconnected
- Support Fire buttons to make sure the fire happening, all doors open
- Supporting AR-721_RB Relay Output module alternates traditional relay module, raise security, resist from stealing, and avoid wrong operation
Specification
| Frequency | 125kHz or HID Prox II or 13.56MHz or Dual Band (125kHz+13.56MHz) or Triple Bual (125kHz+HID Prox II+13.56MHz) |
| Standard | 125kHz : EM Standard |
| HID Prox(Option) | |
| Indala Prox(Option) | |
| 13.56MHz : ISO14443A | |
| ISO7816(Option) | |
| DESFire(Option) | |
| FeliCa(Option) | |
| NFC(Option) | |
| Reading Range | 125kHz : 5-15cm |
| 13.56MHz : 2-5cm | |
| Power Supply | 10-24VDC |
| Power Consumption | < 5W |
| Communication Interface | RS-485 (Ethernet by Order) |
| Data Transfer Rate | 9,600 bps(N,8,1) + 10/100M Base T |
| Operating Temperature | 0℃ to +60℃ |
| Digital Input | Egress(R.T.E.) x 2 / Door contact x 2 |
| Relay Output | Alarm Relay / Lock Relay |
| Lock Relay Time | Toggle, 0.1~600 Sec. |
| Alarm Time | Toggle, 1~600 Sec. |
| Tamper Switch | Limit Switch(Form C) |
| Card User Capacity | 16,000 |
| Event Log | 32,000 |
| External Reader | 1 WG Port |
| Anti-pass-back | Yes |
| Serial Port | Yes |
| Real Time Clock | Yes |
| LCD Panel | 128 x 64 dot LCD Panel(4Lines messages, 16 Characters /line) |
| Transistor Output | Arming LED / Alarm / Duress / WG Lock Relay / Security trigger signal |
| Protection Standard | IP55 |
| Indicator | 6 LED & 1 Beeper |
| Keypad Material | Illuminated Rubber |
| Housing Material | ABS |
| Door Bell | Yes |
| Time Zone | 63 |
| Operation Mode | Stand-Alone / Networking |
| Color | Black / Silver (Edge) (Customerized Panel Available) |
| Dimensions(mm) | 128(L)X147(W)X65(H:Surface Mount)/30(H:Embedded) |
| Weight (g) | Optical Sensor(DO) : 520±10 |
| Capacitive Sensor(MT) : 470±10 | |
| FAR | < 0.001% |
| FRR | < 1% |
| Finger Registration Capacity | 9,000 (4,500~9,000 users) |
| Auth. Speed (1:1000) | DO: 0.97 sec. / MT: 0.65 sec. |
| Operating Illuminance | Yes |
| By order | Voice Module (Option) / HID Module (Option) |
| Patent | Patent for new type of Relay |
| Patent Number: M 333650(Taiwan) ZL 2008 2 0055140.9(China) | |
| Optical Sensor Temperature | 28~29°C |
