Soyal AR-888H
Proximity Controller เครื่องทาบบัตร Soyal AR-888H ควบคุมการเข้าถึงแบบสแตนด์อโลน color LED เครื่องอ่านการ์ดในตัว
คุณสมบัติ
- รองรับ 3,000 บัตร
- บันทึกรายการเข้า-ออกได้ 1,500 รายการ
Features
- RS-485 communication interface
- Supporting WG port for anti-pass-back function
- TTL serial output for various application and lift control
- Selectable working frequencies: 125KHz/13.56MHz
- 3 control modes: M4/ M6 /M8
- User capacity: 3,000; Event log: 1,500
- 3 access modes: Card only, Card or PIN, Card and PIN
- Built-in Watchdog to prevent system from hanging
- Built-in Real Time Clock & Anti-Tamper function
- Including the input of door contact, offering the alarm system of both door opening too long and being forced to open
- Built-in Multi-Output: Door Lock/ Alarm/ Arming/ Duress
- 11 sets of Time Zone for various accessing in network
- 2 sets of Auto-Open Zone editable by stand-alone operation
- Intelligent to shift for stand-alone or networking mode while system disconnected
- Auto-lock of the keypad for 30 seconds after continuous failed operation by 3 times
- Coordinating with softwares for further application on access control, time attendance, payroll, and door/sensor image-monitor function
- Flexible to integrate with other equipments

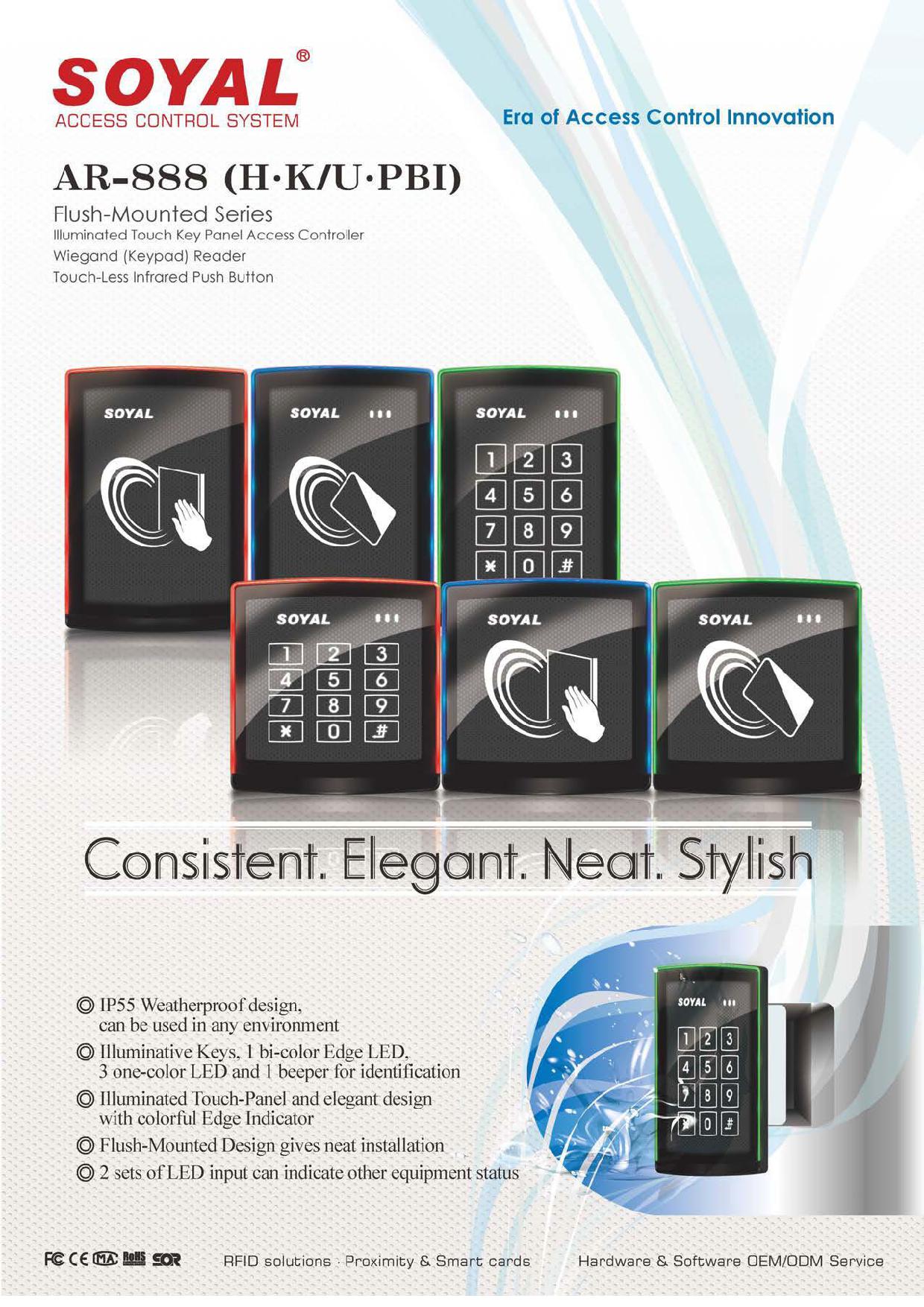

- IP55 Weatherproof design, can be used in any environment
- Illuminative Keys, 1 bi-color Edge LED, 3 one-color LED and 1 beeper for identification
- Illuminated Touch-Panel and elegant design with colorful Edge Indicator
- Flush-Mounted Design gives neat installation
- 2 sets of LED input can indicate other equipment status
- Hall Effect Tamper Sensor

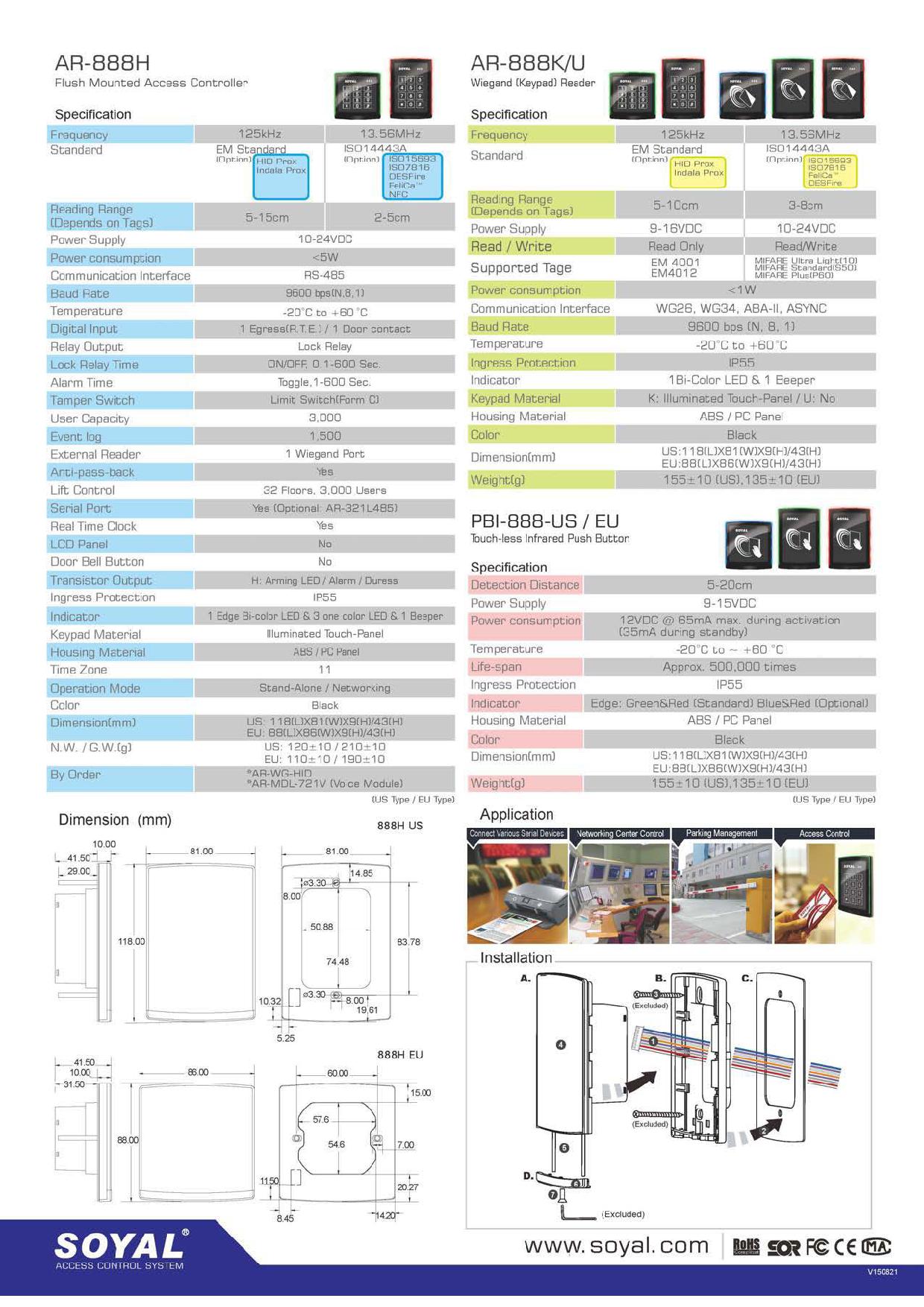

Specification
| Frequency | 125kHz or 13.56MHz |
| Standard | 125kHz : EM Standard |
| 13.56MHz : ISO14443A | |
| ISO15693(Option) | |
| DESFire(Option) | |
| ISO7816(Option) | |
| NFC (Option) | |
| Reading Range | 125kHz : 5-15cm |
| 13.56MHz : 2-5cm | |
| Power Supply | 10-24VDC |
| Power Consumption | < 5W |
| Communication Interface | RS-485 |
| Data Transfer Rate | 9600 bps(N,8,1) |
| Operating Temperature | –20℃ TO +60℃ |
| Digital Input | Egress(R.T.E.) / Door contact |
| Relay Output | Lock Relay |
| Lock Relay Time | Toggle, 0.1~600 Sec. |
| Alarm Time | Toggle, 1~600 Sec. |
| Tamper Switch | Hall Effect Sensor (Open Collector Active Low) |
| User Capacity | M4 / M8 : 3,000 |
| M6 : 65,000 | |
| Event Log | 1,500 |
| External Reader | 1 WG Port |
| Anti-pass-back | Yes |
| Lift Control | 32 Floors, 3,000 Users |
| Serial Port | Yes |
| Real Time Clock | Yes |
| LCD Panel | No |
| Door Bell Button | No |
| Transistor Output | Arming LED / Alarm / Duress |
| Protection Standard | IP65 |
| Indicator | 1 Frame Bi-Color LED & 3 one color LED & 1 Beeper |
| Keypad Material | Illuminated Touch-panel |
| Housing Material | ABS + PC Panel |
| Time Zone | 11/63(Connect to Multi-Door Networking Controller) |
| Operation Mode | Stand-Alone / Networking |
| Color | Standard: Black with Green-Red LED |
| Dimensions(mm) | US : 118(L)X81(W)X9/34(H) |
| Mounting Hole: 73x48X40mm(H-W-D) / Screw hole pitch : 83.5mm | |
| Suitable for 70X118 1-module flush-mounting box.( Australian, Italy, USA(501E) Standard) | |
| EU : 88(L)X86(W)X9/34(H) | |
| Mounting Hole: 57x53X40mm(H-W-D) / Screw hole pitch: 60.0mm | |
| Suitable for 86X86 flush-mounting box. (UK, Continental Europe, Germany Standard) | |
| Weight(g) | US :120±10 (N.W.) / 210 ±10 (G.W.) |
| EU :110±10 (N.W.) / 190 ±10 (G.W.) | |
| Patent | SOR Patent Number: I 365414 (Taiwan) |
